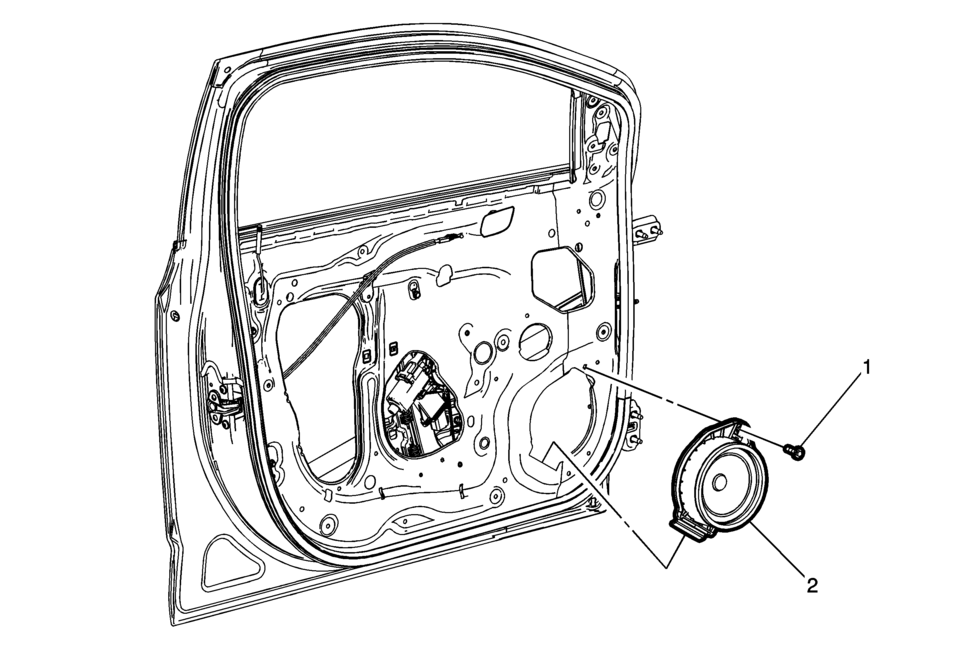

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement. |
|
|
1 |
Radio Front Side Door Speaker Bolt Caution: Refer to Fastener Caution. |
|
2 |
Radio Front Side Door Speaker Procedure
Disconnect the electrical connector. |
