Chevrolet Sonic Repair Manual: Radio Replacement (With US8)

Chevrolet Sonic Repair Manual / Accessories / Navigation and Telematics / Radio Replacement (With US8)

Radio Replacement

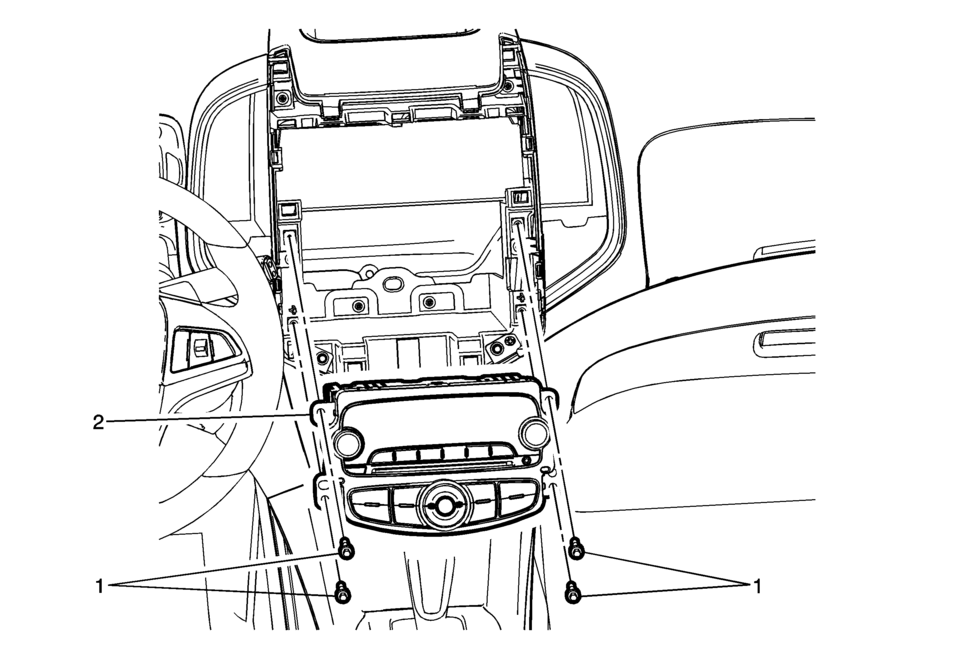

Callout	Component Name
Preliminary Procedure Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement.
1	Radio Bolts (Qty: 4) Caution: Refer to Fastener Caution.
2	Radio Assembly Procedure Disconnect the electrical connections. Refer to Control Module References for programming and setup information.
