Chevrolet Sonic Repair Manual: Rear Compartment Courtesy Lamp Replacement (Sedan)

Chevrolet Sonic Repair Manual / Body / Body Electrical / Lighting / Interior Lighting / Rear Compartment Courtesy Lamp Replacement (Sedan)

Rear Compartment Courtesy Lamp Replacement

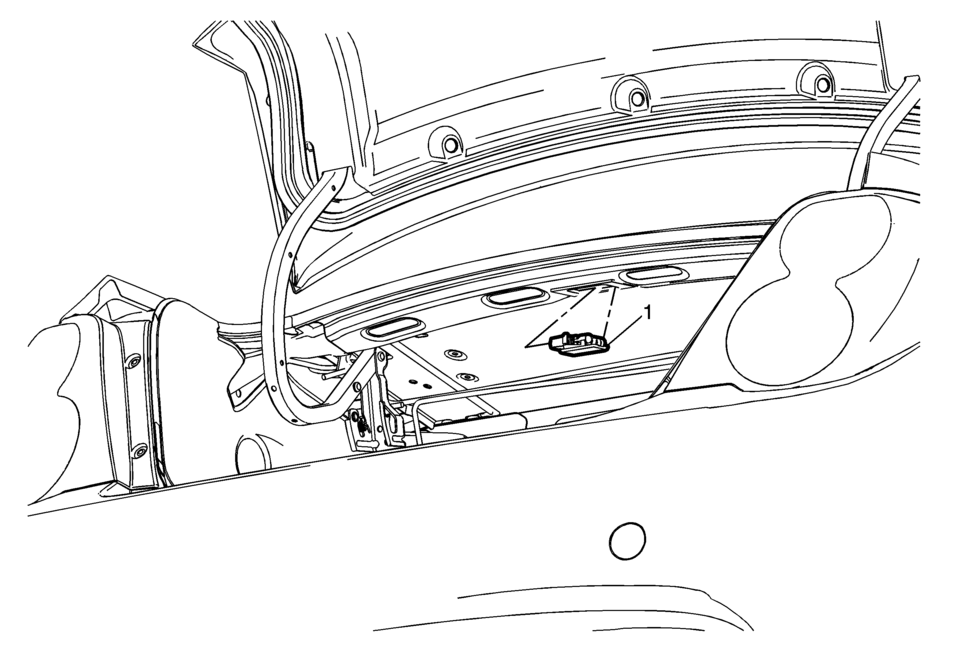

Callout	Component Name
1	Rear Compartment Courtesy Lamp Assembly Procedure Use the appropriate trim tool in order to release the lamp assembly from the rear quarter trim panel. Disconnect the electrical connection.
