Chevrolet Sonic Repair Manual: Rear Seat Center Shoulder Belt Replacement (Sedan)
|

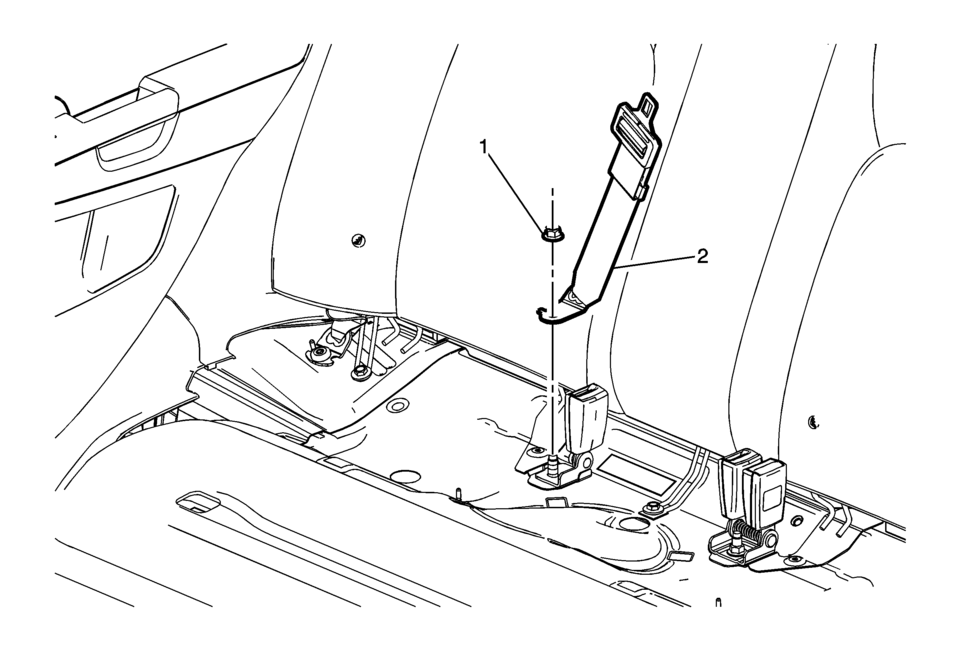

Callout |
Component Name |
|---|---|
|
Preliminary Procedures
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation. |
|
|
1 |
Rear Seat Center Shoulder Belt Buckle Fastener Caution: Refer to Fastener Caution.
45?€‰Y?€‰(33?€‰lb?€‰ft) |
|
2 |
Rear Seat Center Shoulder Belt |
