Chevrolet Sonic Repair Manual: Rear Side Door Replacement

Chevrolet Sonic Repair Manual / Body / Body Exterior / Panels / Rear Side Door Replacement



Rear Side Door Replacement

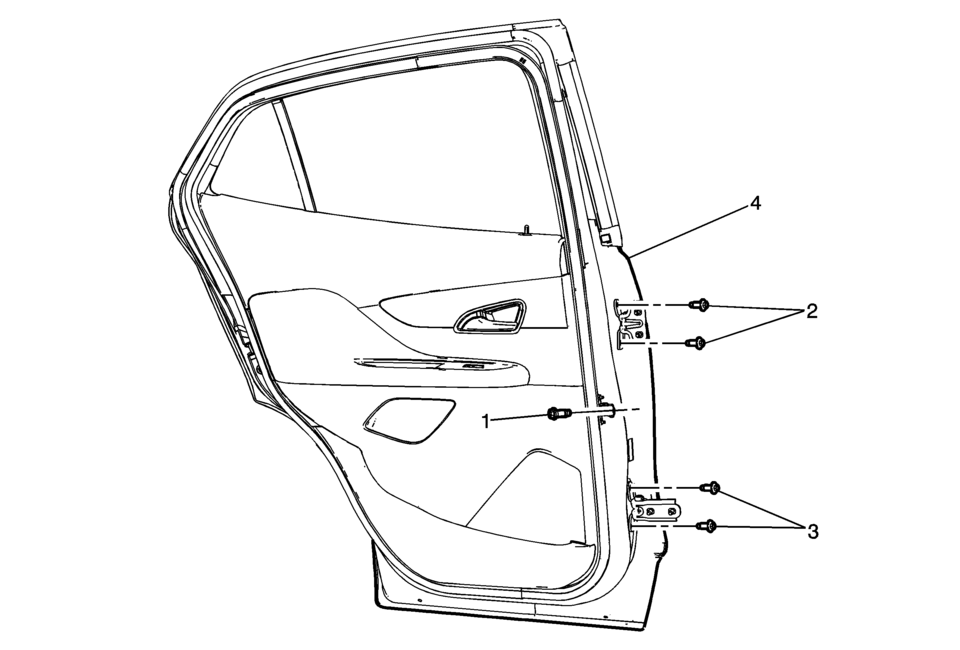

Callout

Component Name

Warning:

Refer to SIR Warning.

Preliminary Procedures

  1. Mark the location of the hinge before removing the bolts with a grease pencil.
  2. Remove the rear door trim panel. Refer to Rear Side Door Trim Replacement.

1

Rear Side Door Check Link Bolt to Body

Caution:

Refer to Fastener Caution.

Procedure

  1. Remove the water deflector.
  2. Disconnect the door electrical connector.
  3. Support the door before removing the hinge bolts.
  4. With an assistant, remove the door.
  5. After the door has been removed, ensure that the dome lamp is off. If the dome lamp is on remove the fuse.
Tighten


22?€‰Y (16?€‰lb?€‰ft)

2

Rear Side Door Hinge Bolt to Door (Qty:?€‰2)

Tighten


32?€‰Y (24?€‰lb?€‰ft)

3

Rear Side Door Hinge Bolt to Door (Qty:?€‰2)

Tighten


32?€‰Y (24?€‰lb?€‰ft)

4

Rear Side Door Assembly

Procedure

  1. When replacing the door it is necessary to transfer all of the internal components.
  2. If the door striker needs adjust. Refer to Rear Side Door Lock Striker Adjustment.
  3. Rear door adjustment. Refer to Rear Side Door Adjustment.
