Chevrolet Sonic Repair Manual: Rear Wheelhouse Liner Replacement (Sedan - Left)

Chevrolet Sonic Repair Manual / Body / Body Exterior / Panels / Rear Wheelhouse Liner Replacement (Sedan - Left)



Rear Wheelhouse Liner Replacement

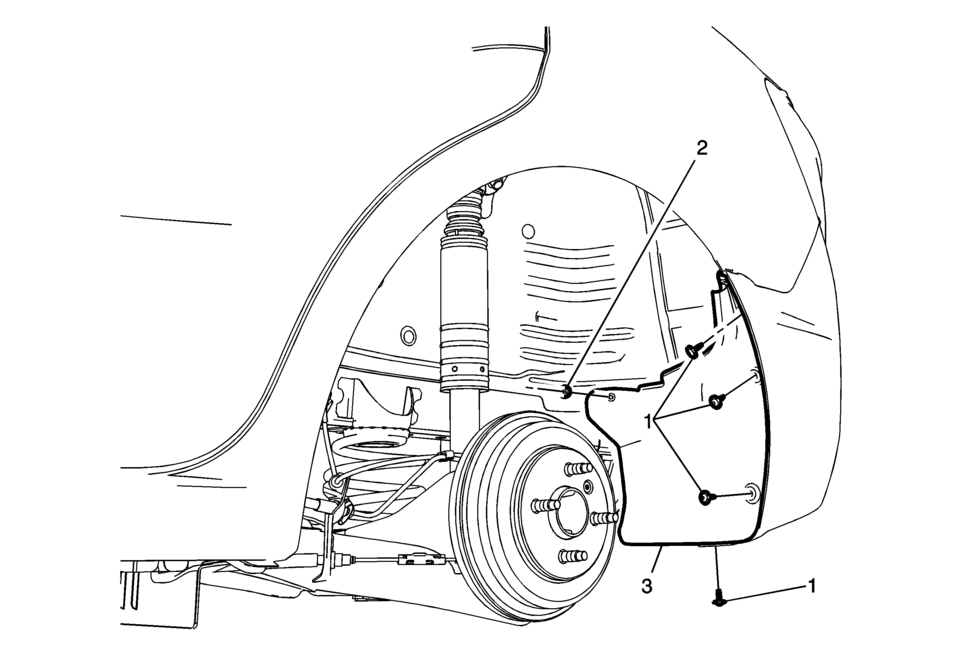

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.

1

Rear Wheelhouse Panel Liner Screw (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


3?€‰Y (27?€‰lb?€‰in)

2

Rear Wheelhouse Panel Liner Push-In Retainer

3

Rear Wheelhouse Panel Liner

Rear Wheelhouse Liner Replacement (Hatchback - Right)
Rear Wheelhouse Liner Replacement Callout Component Name Preliminary Procedure Remove the tire and wheel assembly. Refer to Tir ...

Rear Wheelhouse Liner Replacement (Sedan - Right)
Rear Wheelhouse Liner Replacement Callout Component Name Preliminary Procedure Remove the tire and wheel assembly. Refer to Tir ...
