Rear Wheelhouse Panel Liner Extension Replacement

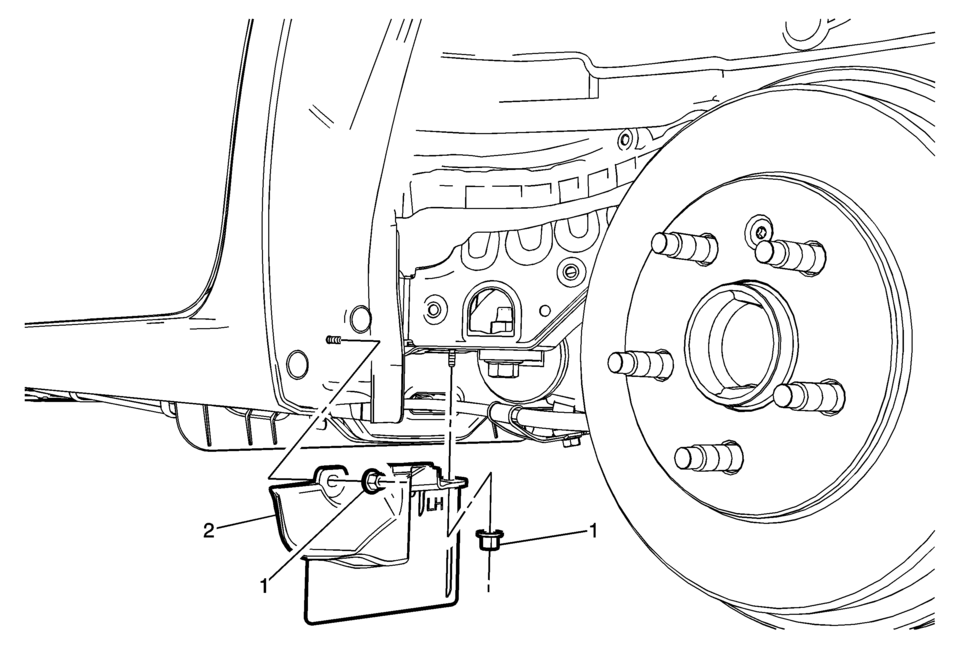

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.

1

Rear Wheelhouse Panel Liner Extension Nut (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

2

Rear Wheelhouse Panel Liner Extension

Rear Wheelhouse Liner Replacement (Sedan - Right)
