Rear Window Panel Trim Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement.
  2. Remove the body rear seat back trim panel. Refer to Body Rear Seat Back Trim Panel Replacement.

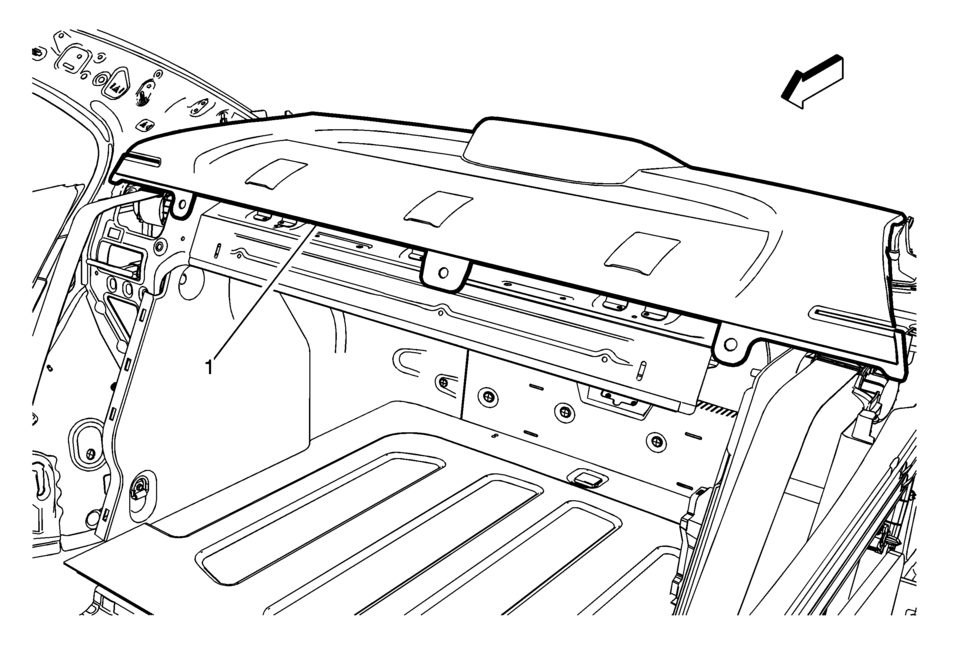

1

Rear Window Panel Trim Assembly

Procedure

When replacing the rear window panel trim assembly, transfer all necessary components.
