Chevrolet Sonic Repair Manual: Rear Window Washer Nozzle Replacement

Chevrolet Sonic Repair Manual / Body / Glass & Windows / Side Windows / Rear Window Washer Nozzle Replacement

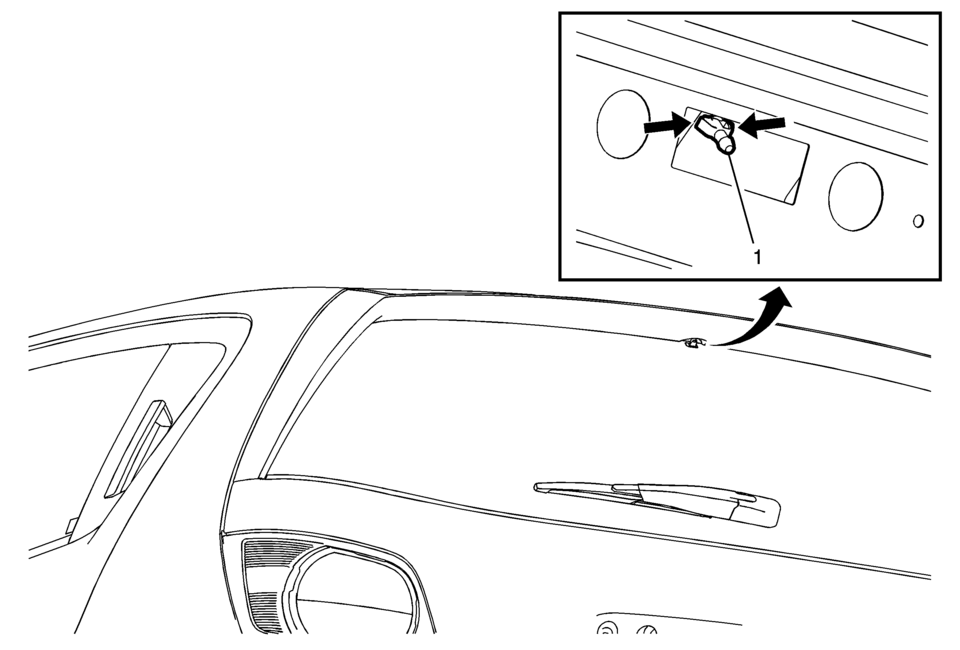

Rear Window Washer Nozzle Replacement

Callout

Component Name

Preliminary Procedure

Remove the inside high mount stop lamp. Refer to High Mount Stop Lamp Replacement.

1

Rear Window Washer Nozzle

Procedure

  1. Access the rear window washer nozzle through the hole in behind the high mounted stop lamp.
  2. Disconnect the washer hose from the spout.
  3. Pinch the two tabs on the rear window washer nozzle and push the nozzle up through the liftgate hole.
  4. Remove the rear window washer nozzle from the vehicle.
