Chevrolet Sonic Owner's Manual: Recommended Fluids and Lubricants

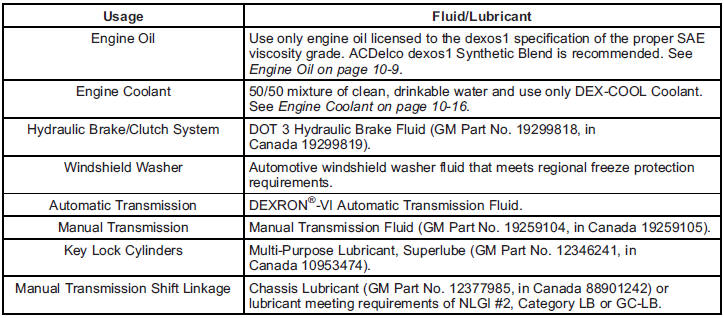

Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.

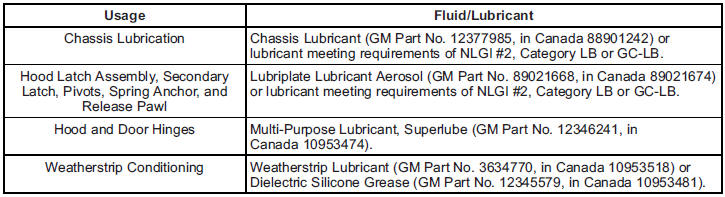

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can
be obtained from your dealer.
Maintenance Replacement Parts
...
