The RKE transmitter may work up to 60m (195 ft) away from the vehicle.
Other conditions can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System.

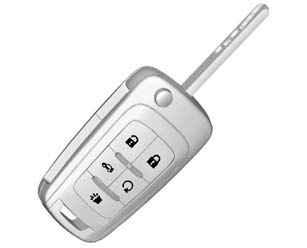

The RKE transmitter can have one of the two symbols for the remote trunk release.

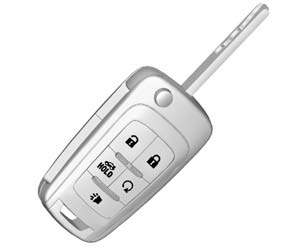

With Remote Start Shown
The following buttons are on the transmitter:
(Lock): Press to lock all doors.
The turn signal indicators may flash and/or the horn may sound to indicate locking.
See “Remote Locking, Unlocking, Starting” under Vehicle Personalization.
If the driver door is open when is
pressed, all doors lock except the driver door, if Unlocked Door Anti Lock Out is
enabled through the vehicle personalization. See “Unlocked Door Anti Lock Out” under
Vehicle Personalization. If the passenger door is open when
is pressed, all doors lock.
Pressing may also arm the theft-deterrent
system. See Vehicle Alarm System.
(Unlock): Press to unlock the driver
door or all doors. See “Remote Locking, Unlocking, Starting” under Vehicle Personalization. The turn signal indicators flash to indicate unlocking has occurred.
For more information see “Remote Unlock Feedback” under Vehicle Personalization.
Pressing may also disarm the theft-deterrent
system. See Vehicle Alarm System.
or
(Remote Trunk Release): If equipped,
press and hold to release the trunk.
(Vehicle Locator/Panic Alarm): Press
and release one time to initiate vehicle locator. The exterior lamps flash and the
horn chirps three times. Press and hold
for at least three seconds to sound
the panic alarm. The horn sounds and the turn signals flash for 30 seconds until
is pressed again, or the key is placed
in the ignition and turned to ON/RUN.
(Remote Vehicle Start):
If equipped, press and release and
then immediately press and hold for
approximately two seconds or until the turn signal lamps flash to start the engine
from outside the vehicle using the RKE transmitter. See Remote Vehicle Start.
The buttons on the RKE transmitter are disabled when there is a key in the ignition.
