Chevrolet Sonic Owner's Manual: Replacement Bulbs

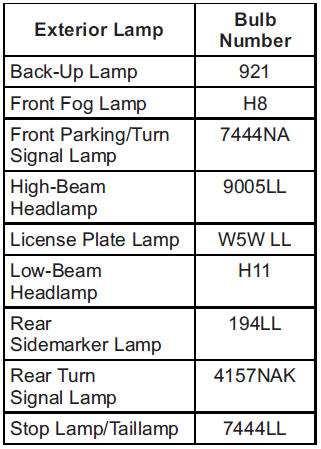

For replacement bulbs not listed here, contact your dealer.
License Plate Lamp
Lamp Assembly
Bulb Assembly
1. Bulb Socket
2. Bulb
3. Lamp Assembly
To replace one of these bulbs:
1. Push the left end of the lamp assembly toward the right.
2. Turn the lamp assembly down ...
