Chevrolet Sonic Repair Manual: Roof Rail Front Assist Handle Replacement
|

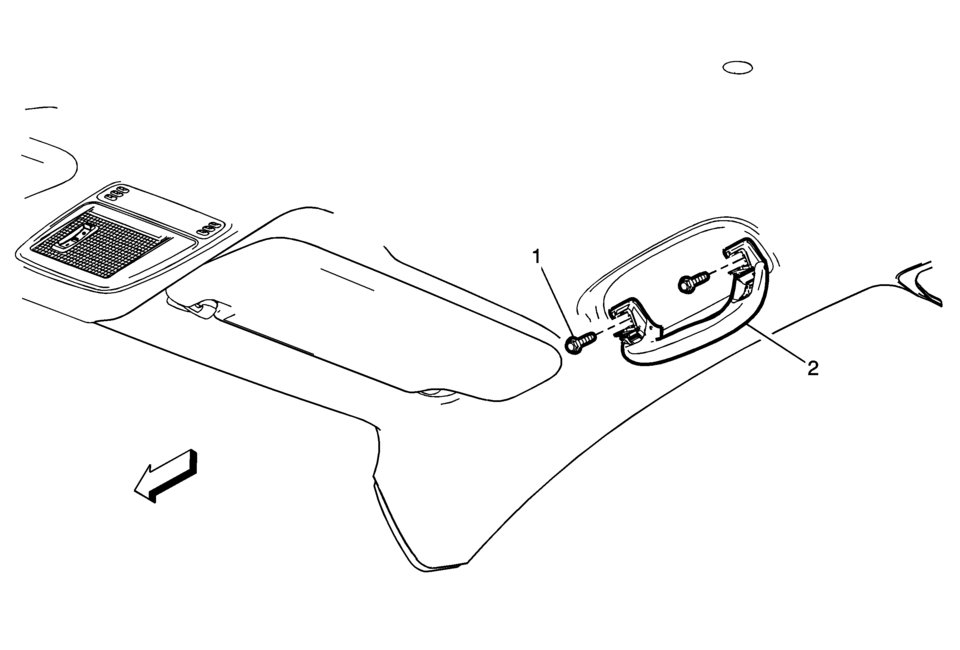

Callout |
Component Name |
|---|---|
|
1 |
Roof Rail Front Assist Handle Fastener (Qty:?€‰2) Caution: Refer to Fastener Caution.
6?€‰Y?€‰(53?€‰lb?€‰in) |
|
2 |
Roof Rail Front Assist Handle Assembly |
Roof Outer Panel Replacement (5HB)
Removal Procedure
Warning: Refer to Approved Equipment for Collision Repair
Warning.
Disable the SIR system. Refer to SIR Disabling and Enabling.
Disconnect the nega ...
Roof Rail Rear Assist Handle Replacement
Roof Rail Rear Assist Handle Replacement
Callout
Component Name
1
Roof Rail Rear Assist Handle Fastener (Qty:?€‰2)
...
Other materials:
Front Wheelhouse Liner Replacement (Front)
Front Wheelhouse Liner Replacement
Callout
Component Name
Preliminary Procedure
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and
Installation.
1
Front Wheelhouse Liner Scr ...
Camshaft Timing Chain Installation
Special Tools
EN-952 Fixing Pin
EN-953-A Fixing Tool
EN-955-10 Fixing Pin from EN-955 Kit
For equivalent regional tools, refer to Special Tools.
The engine should be adjusted to TDC.
The crankshaft should be locked with EN-952 fixing pin.
The camshaft should be locked with EN-9 ...
Evaporative Emission Canister Replacement
Removal Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
Remove the EVAP canister cover fasteners (1) and cover (2).
Warning: Do not breathe the air through the EVAP component
tubes or hoses. The fuel vapors inside t ...
