Chevrolet Sonic Repair Manual: Secondary Air Injection Check Valve Installation

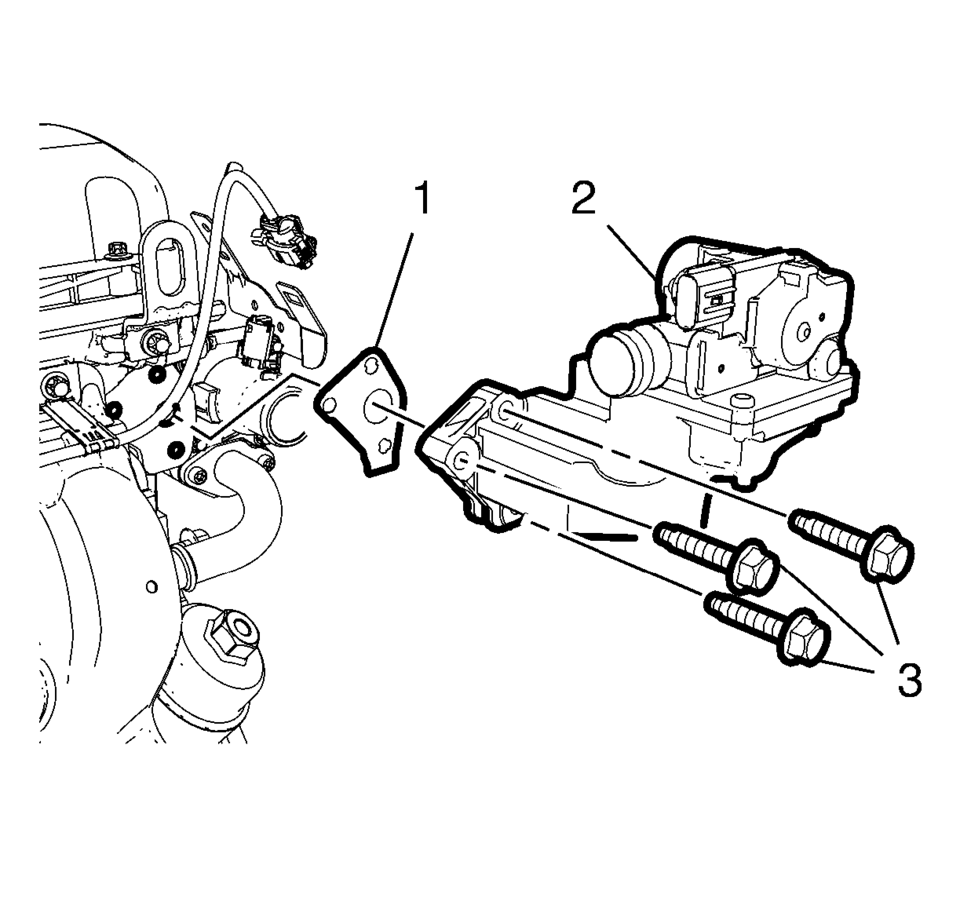

- Install a NEW secondary air injection check valve gasket (1).
- Install the secondary air injection check valve (2).
- Install the 3 secondary air injection check valve bolts (3) and tighten
to 22 Y (16 lb ft)
.
Caution:
Refer to Fastener Caution.
Air Injection
...
Secondary Air Injection Check Valve Removal
Remove the 3 secondary air injection check valve bolts (3).
Remove the secondary air injection check valve (2).
Remove and DISCARD the secondary air injection check valv ...
