Chevrolet Sonic Repair Manual: Secondary Air Injection Pump Pipe Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Emissions / Air Injection / Secondary Air Injection Pump Pipe Replacement



Secondary Air Injection Pump Pipe Replacement

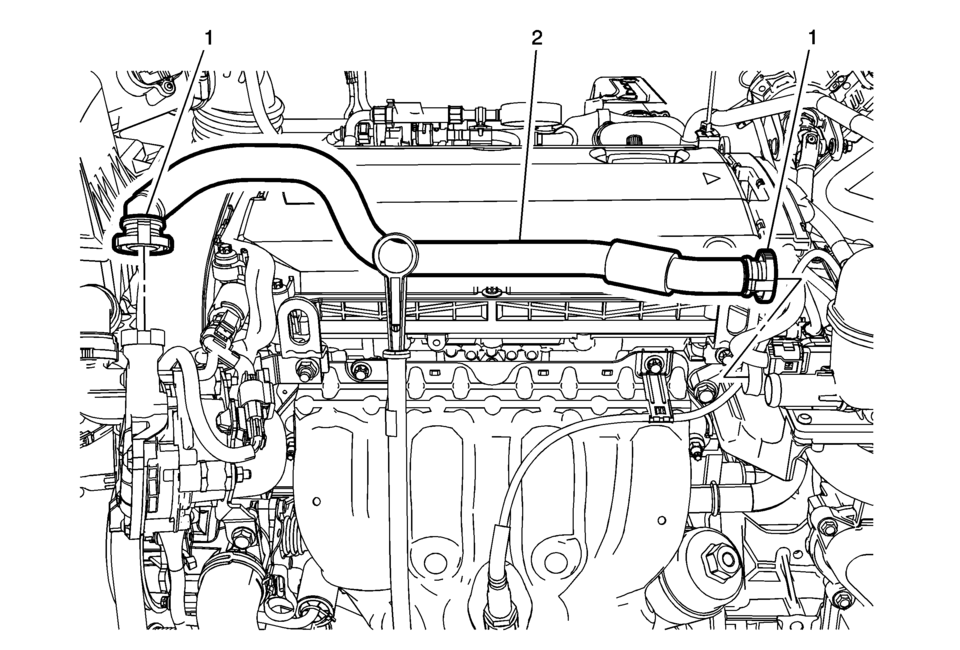

Callout

Component Name

1

Hose Retainer (QTY:2)

Note:

Squeeze the retainer on opposite sides to release.

2

Secondary Air Injection Pipe.

Procedure

Disconnect the pipe from the secondary air injection pump and the secondary air injection check valve.

Secondary Air Injection Pump Pipe Removal
Disconnect the secondary air injection pump pipe (3) from the secondary air injection check valve. Refer to Plastic Collar Quick Connect Fitting Service. ...

Secondary Air Injection Pump Removal
Disconnect the secondary air injection pump pipe (3). Refer to Plastic Collar Quick Connect Fitting Service. Remove the secondary air injection pump nut (2) and the 2  ...
