Secondary Air Injection Pump Replacement

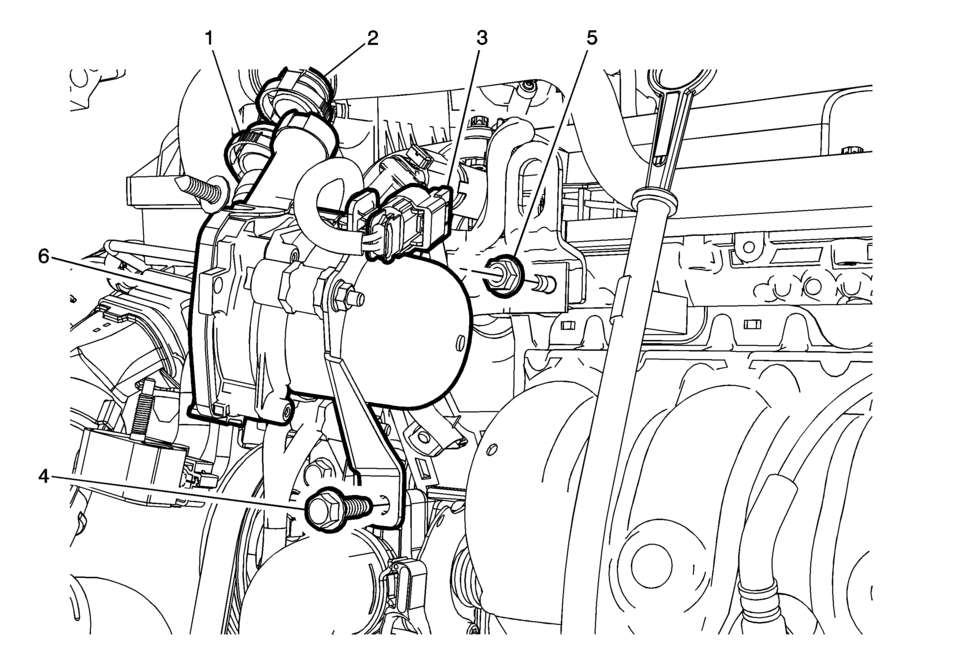

Callout

Component Name

1

Secondary Air Injection Pump Inlet Pipe

Note:

Squeeze the retainer on opposite sides to release.

2

Secondary Air Injection Pump Outlet Pipe

Note:

Squeeze the retainer on opposite sides to release.

3

Secondary Air Injection Pump Electrical Connector

4

Secondary Air Injection Pump Bolt

Caution:

Refer to Fastener Caution.

Tighten


22 Y (16 lb ft)

5

Secondary Air Injection Pump Nut

Tighten


22 Y (16 lb ft)

6

Secondary Air Injection Pump

Secondary Air Injection Pump Removal
Disconnect the secondary air injection pump pipe (3). Refer to Plastic Collar Quick Connect Fitting Service. Remove the secondary air injection pump nut (2) and the 2  ...

Secondary Air Injection System Description
The Secondary Air Injection System aids in the reduction of hydrocarbon exhaust emissions during a cold start. This occurs when the start-up engine coolant temperature (ECT) is between −10 t ...
