Chevrolet Sonic Repair Manual: Shoulder Belt Replacement - Rear (Sedan)
|

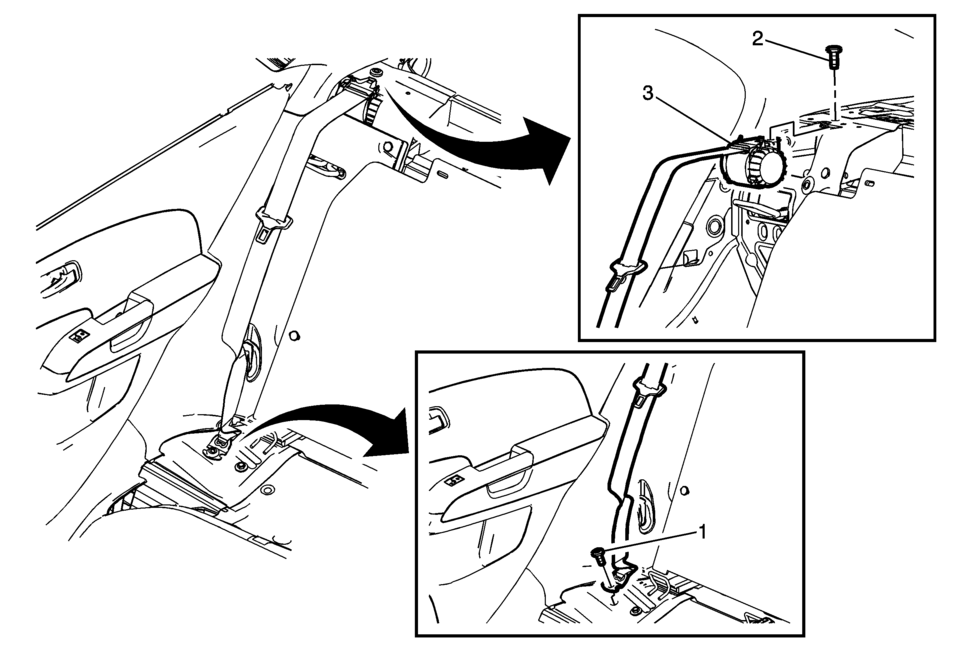

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement. |
|
|
1 |
Rear Seat Shoulder Belt Anchor Plate Fastener Caution: Refer to Fastener Caution.
45?€‰Y?€‰(33?€‰lb?€‰ft) Note: When the seat belt retractor is replaced with a new one, there is no thread in the nut welded to the retractor. This is normal as the bolt will make the thread in the welded nut when the bolt is tightened. |
|
2 |
Rear Seat Shoulder Belt Retractor Fastener Tighten
45?€‰Y?€‰(33?€‰lb?€‰ft) |
|
3 |
Rear Seat Shoulder Belt |
Shoulder Belt Replacement - Rear (Hatchback)
Shoulder Belt Replacement - Rear
Callout
Component Name
Preliminary Procedures
Remove the rear seat cushion. Refer to Rear Seat Cus ...
