Callout |
Component Name |
|---|---|
|
1 |

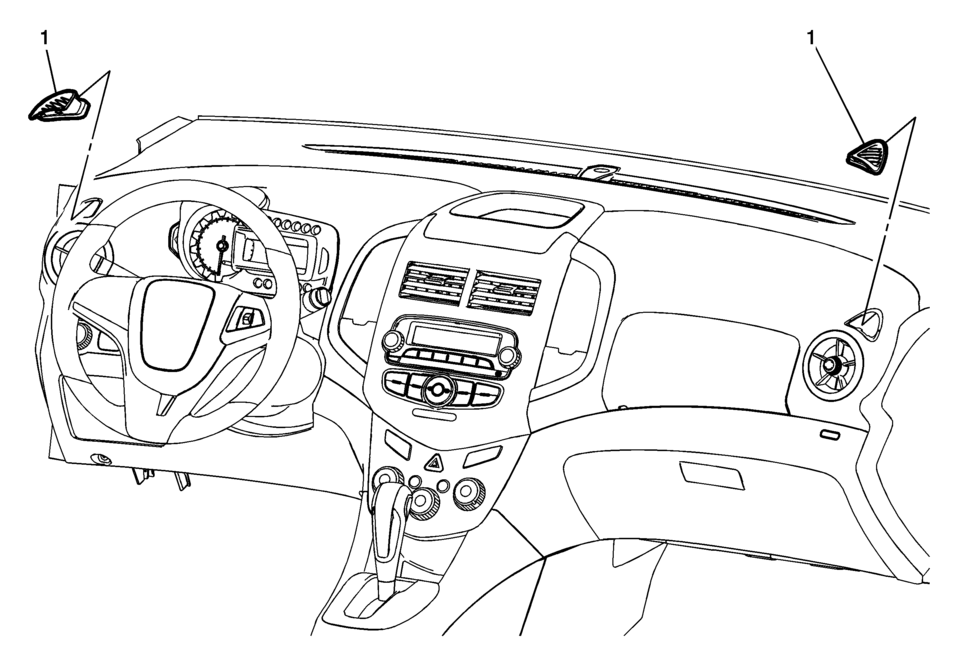

Side Window Defroster Outlet Grille (Qty:?€‰2) Procedure
Use a flat bladed plastic trim tool to aid in the removal of the grille assemblies from the instrument panel. |
Rear Window Washer Nozzle Replacement
Window ControlSunroof Description and Operation (Tilt and Slide)
The Tilt/Slide sunroof consists of a moving glass panel and a manual sunshade.
In the Tilt/Slide sunroof system the rear of the glass tilts up above the roof line
for venting, and slides between the headliner and the roof panel to open fully.
The sunshade is operated by manually pushing or pu ...
Intake Manifold Installation (1.8L LUW and LWE)
Clean the sealing surfaces.
Install 4 NEW gaskets.
Caution: Refer to Fastener Caution.
Install the intake manifold (2) and the 7 intake manifold bolts (1) and
tighten to 20 Y (15 lb ft).
Install the intake m ...
Timing Belt Replacement
Special Tools
EN-6333 Timing Belt Tensioner Locking Pin
EN-6340 Camshaft Locking Tool
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Note: If the timing belt is being replaced due to the maintenance
schedule interval, then the timing belt t ...
