Chevrolet Sonic Repair Manual: Special Tools

Illustration

Tool Number/ Description


CH-161-B

DT-161-B

KM-161-B

J-22888-20A

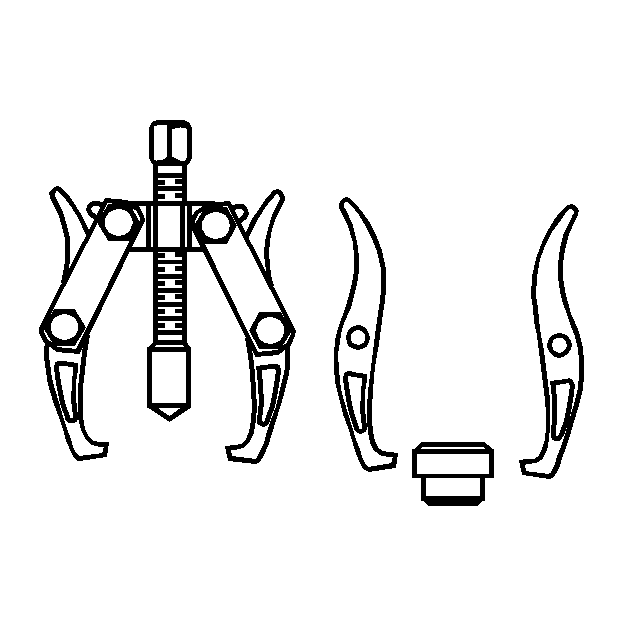

Bearing Puller


CH-804

CH-49692

MKM-804

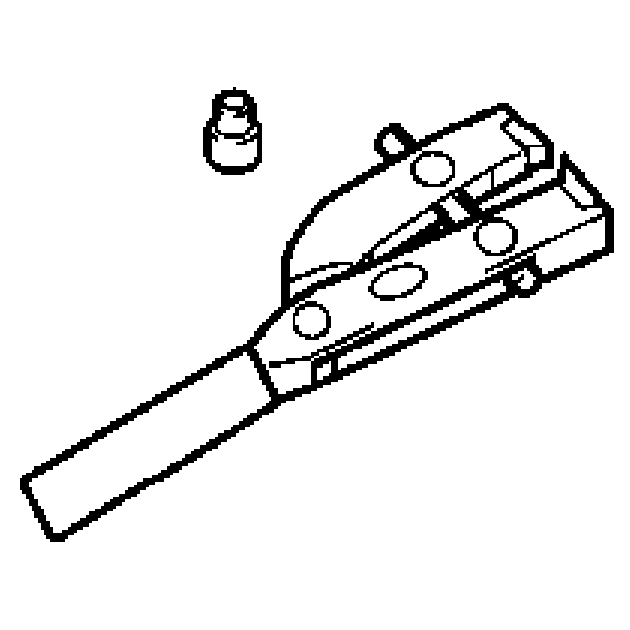

Tensioner


CH-39570

J-39570

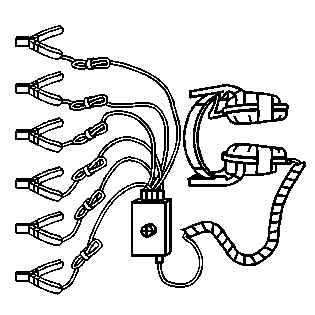

Chassis Ear


EN-45059

J-45059

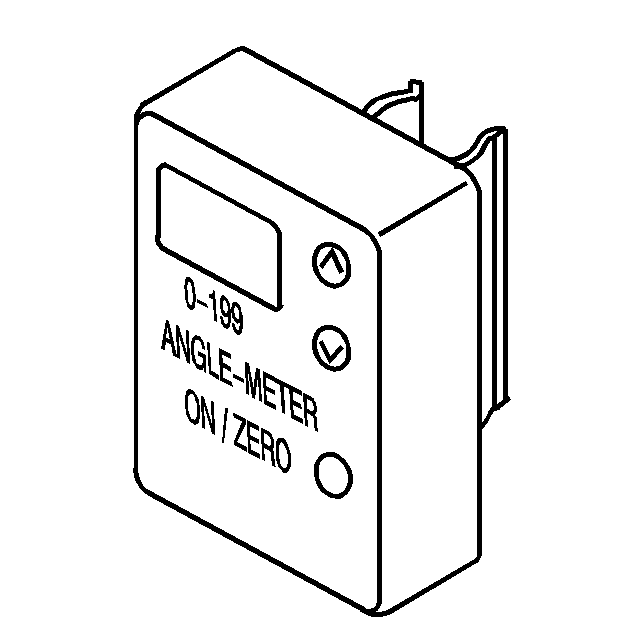

Angle Meter


GE-8001

J-8001

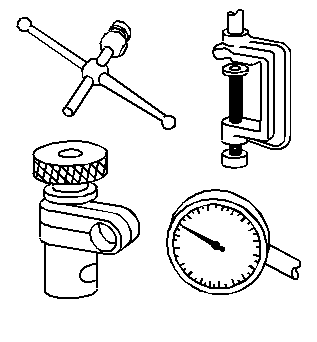

Dial Indicator Set

Power Steering System Description and Operation
The power steering system reduces the amount of effort needed to steer the vehicle. The system uses the powertrain control module (PCM), body control module (BCM), power steering control module (P ...

Steering Gear Boot Replacement
Special Tools CH-804  Tensioner For equivalent regional tools, refer to Special Tools. Removal Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicl ...
