Chevrolet Sonic Repair Manual: Special Tools
|
Illustration |
Tool Number/Description |
|---|---|
|

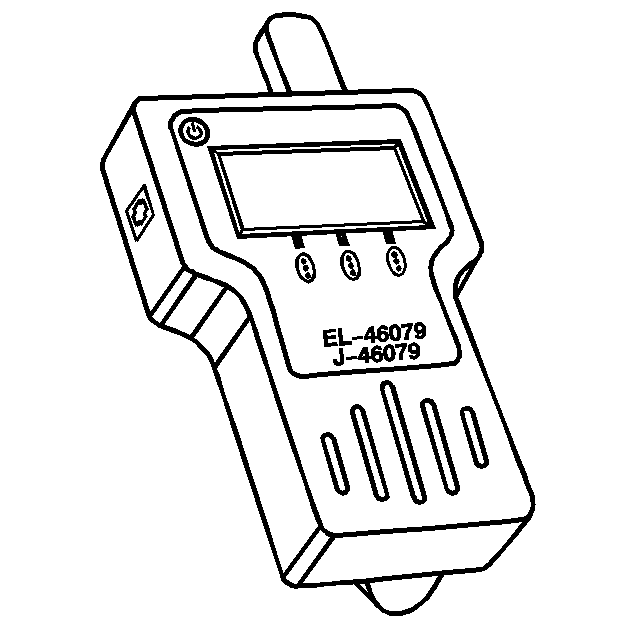

EL 46079 Tire Pressure Monitor Diagnostic Tool |
 |

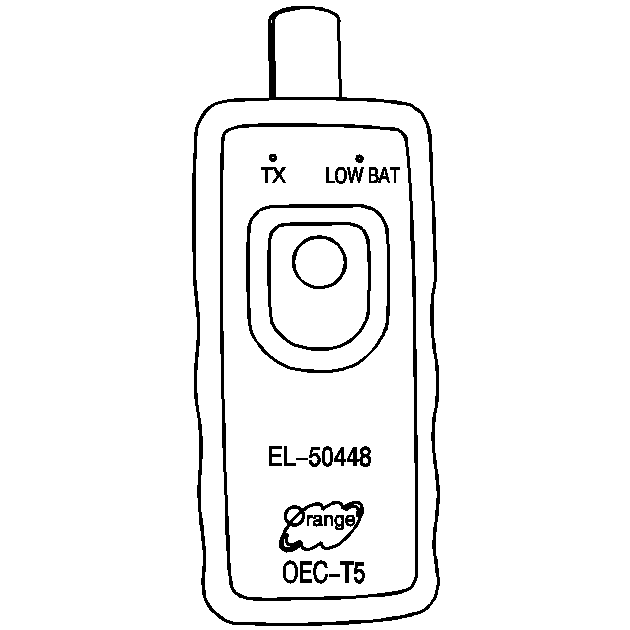

EL 50448 Tire Pressure Monitor Sensor Activation Tool |
TPMS
...
Tire Pressure Indicator Sensor Learn
Special Tools
EL-46079 Tire Pressure Monitor Diagnostic Tool
EL-50448 Tire Pressure Monitor Sensor Activation Tool
For equivalent regional tools, refer to Special Tools.
