Chevrolet Sonic Repair Manual: Special Tools
|
Illustration |
Tool Number/Description |
|---|---|
|

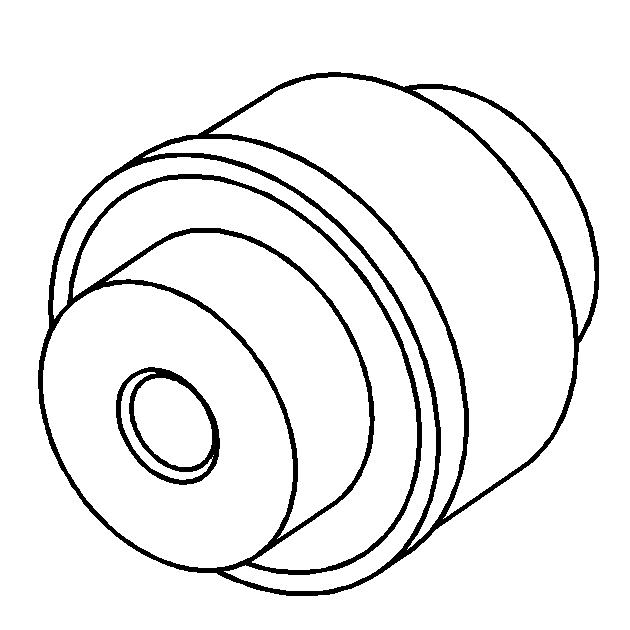

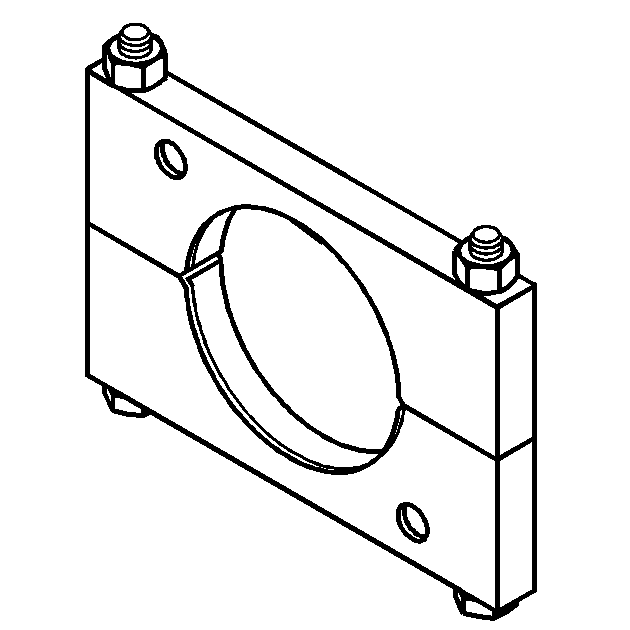

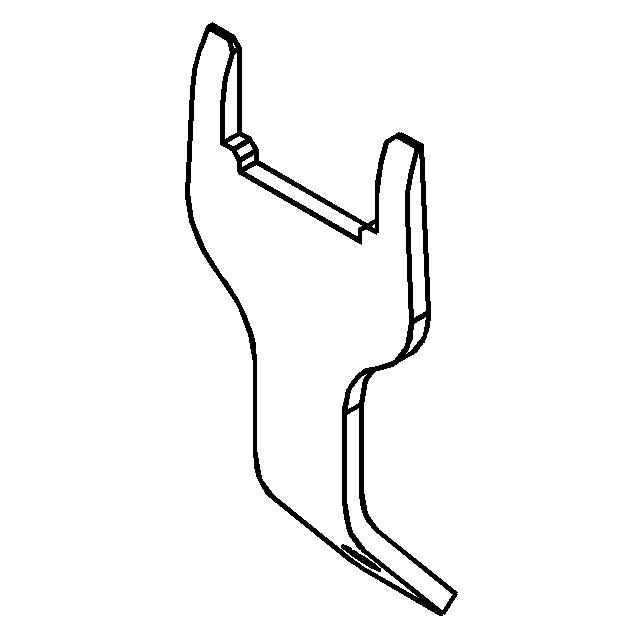

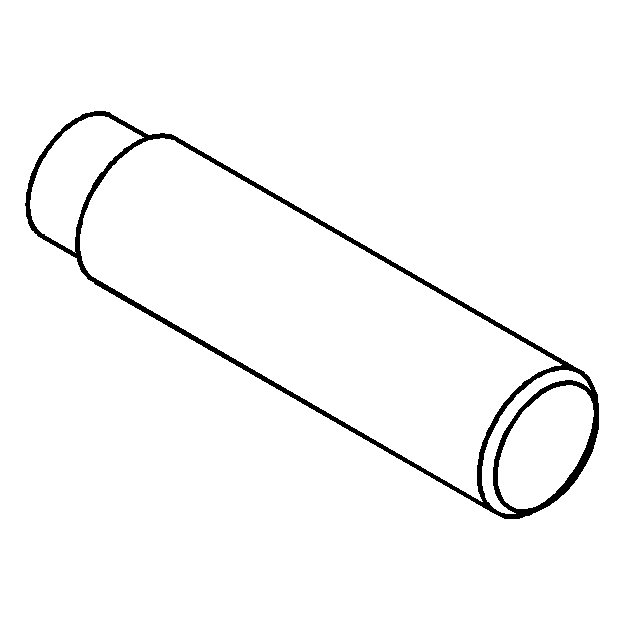

3-0207944 Main Shaft Tapered Bearing Insert Tool |
|

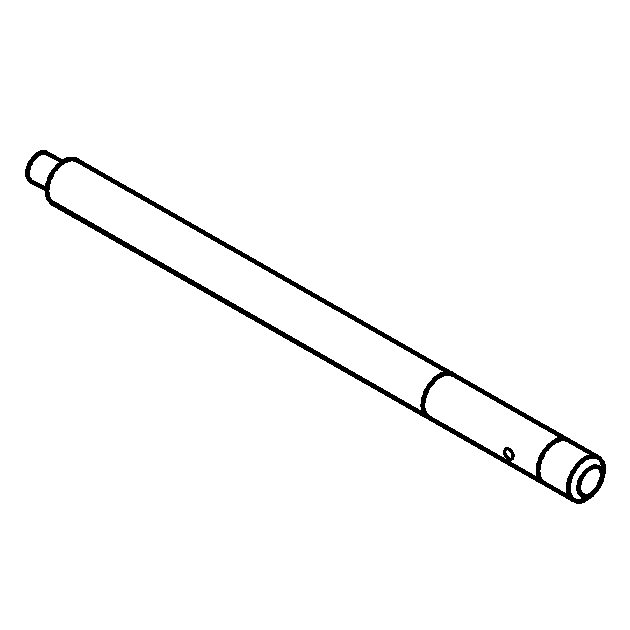

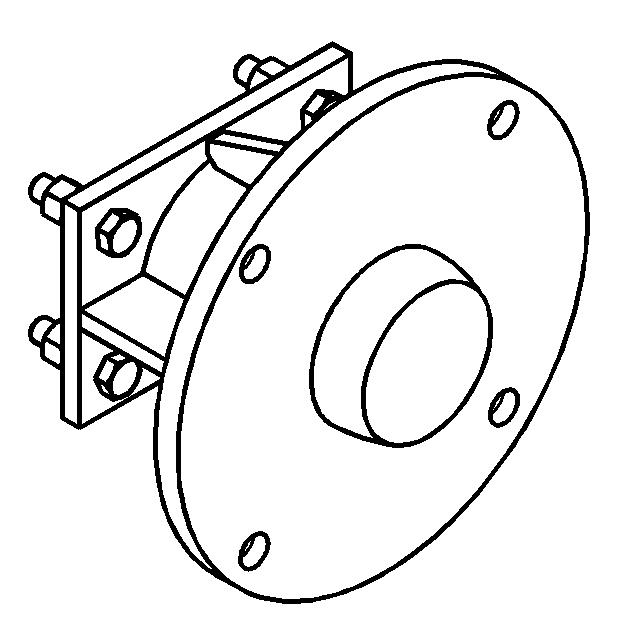

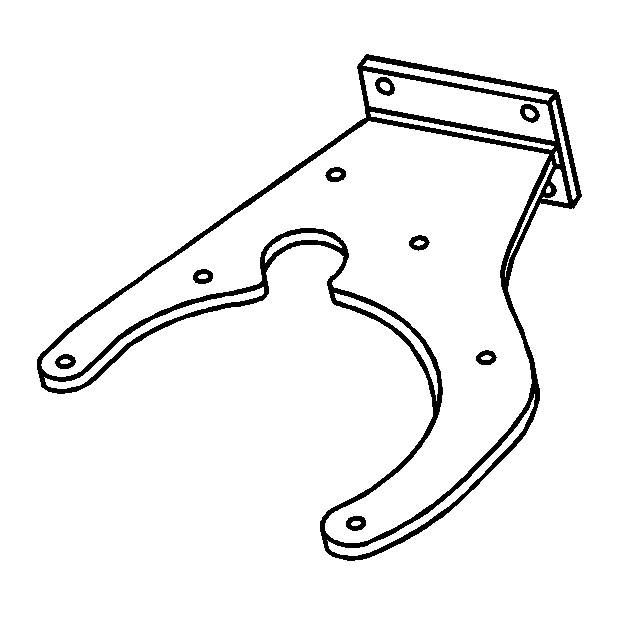

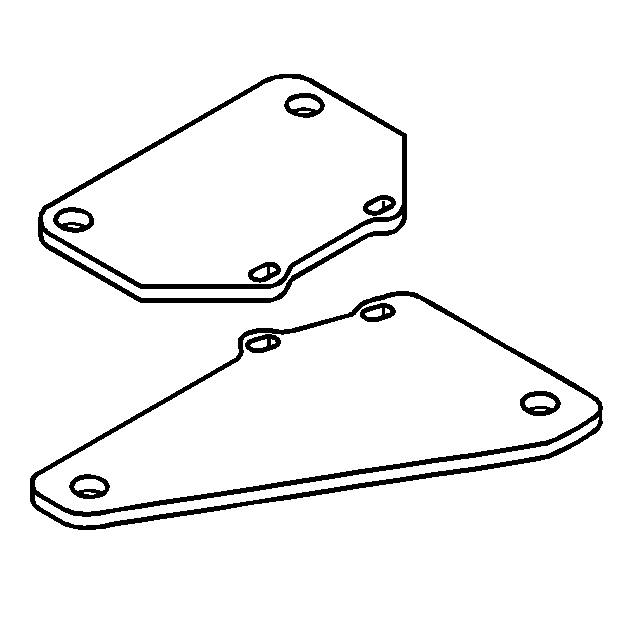

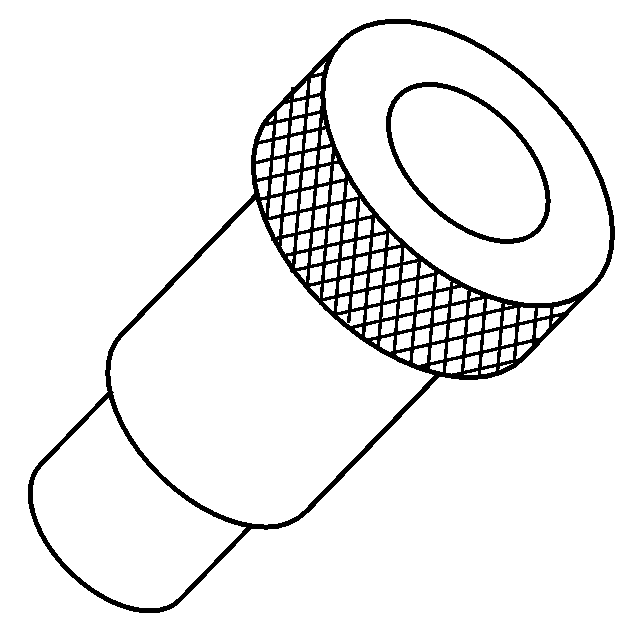

39506289 Universal Adapter, 2.5L HST Engine |
|

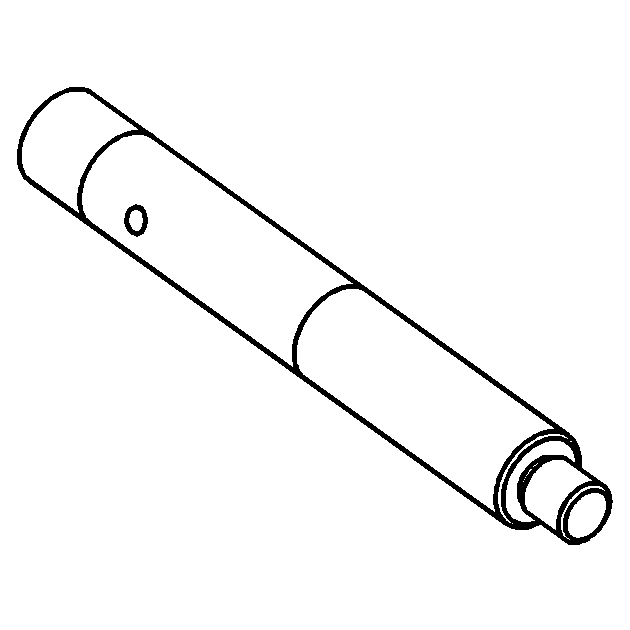

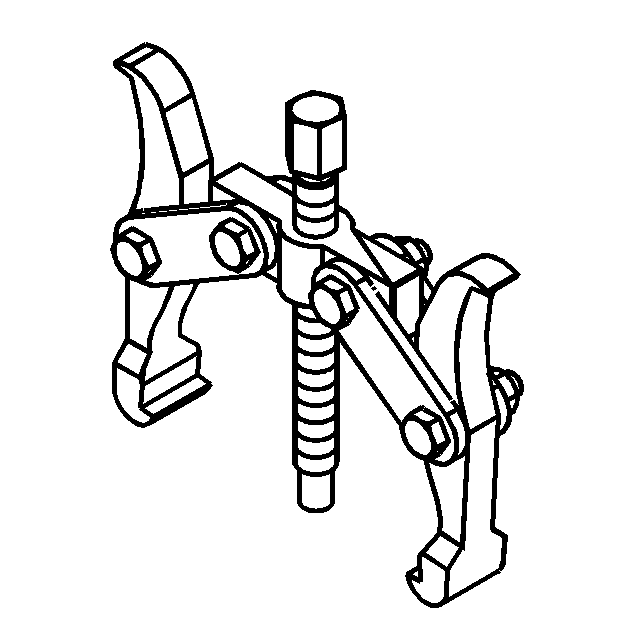

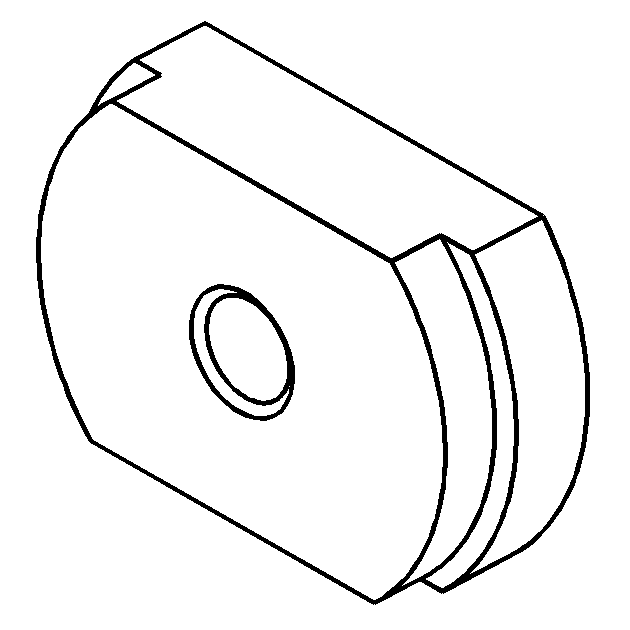

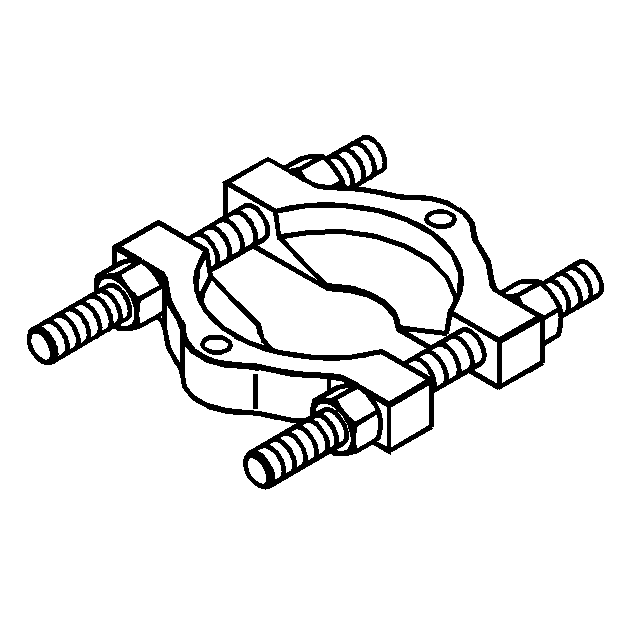

69604356 Gear Pullers |
|

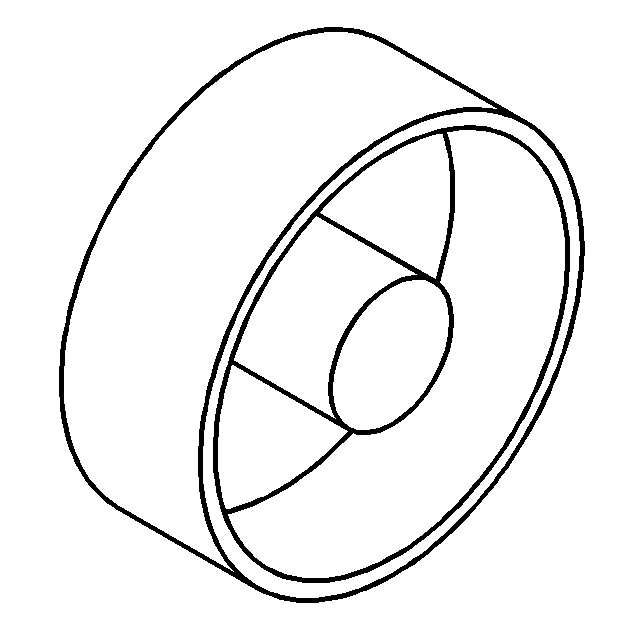

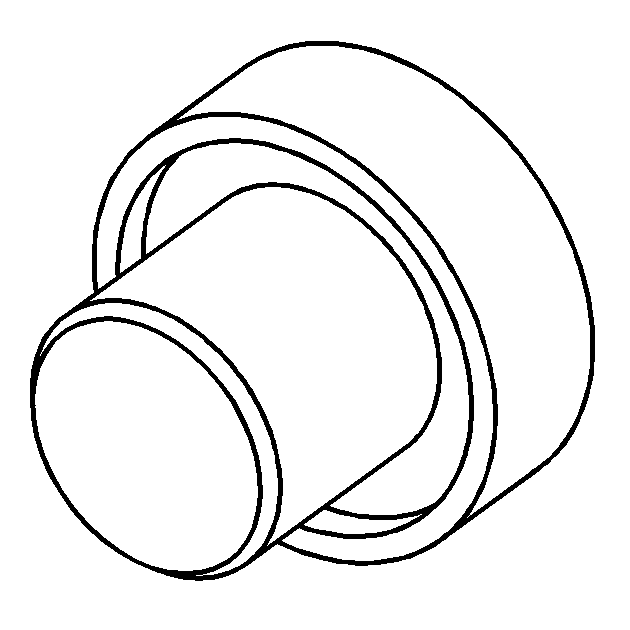

69607346 Speed Sensor Impeller Ring Puller |
|

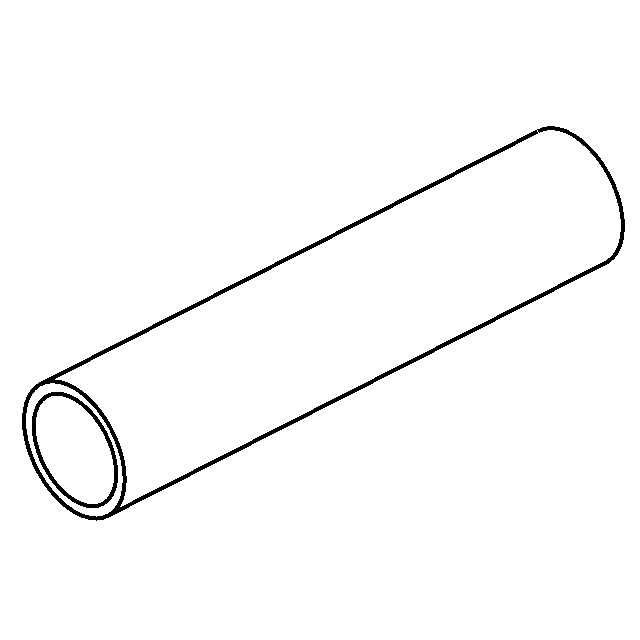

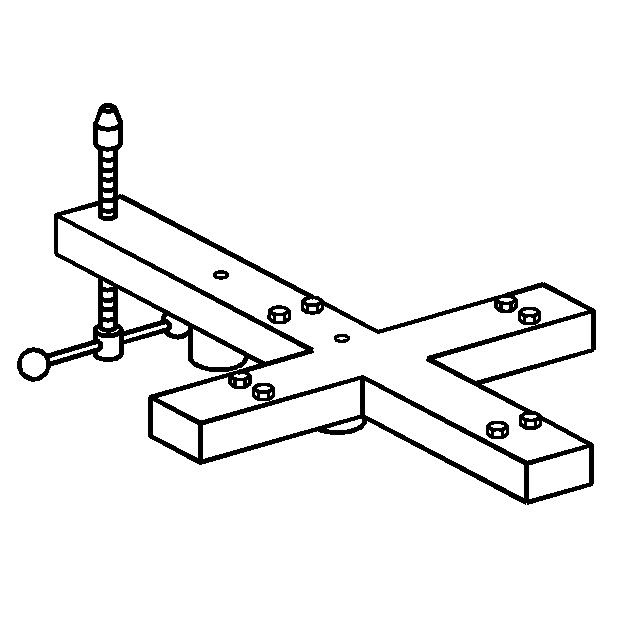

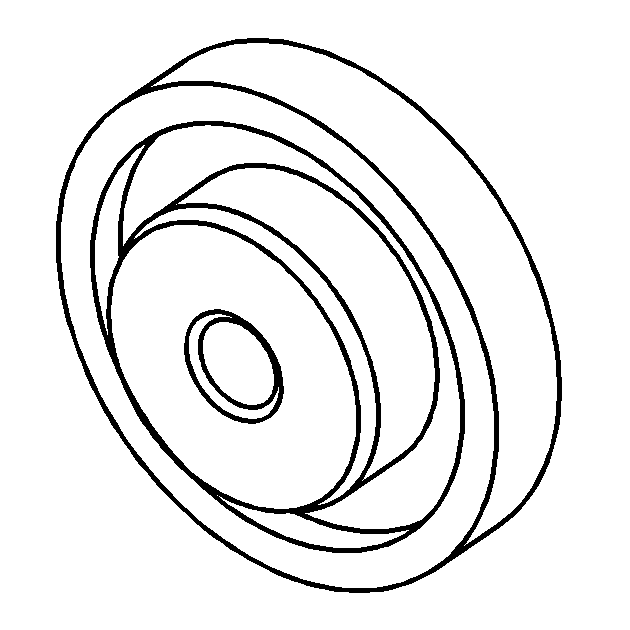

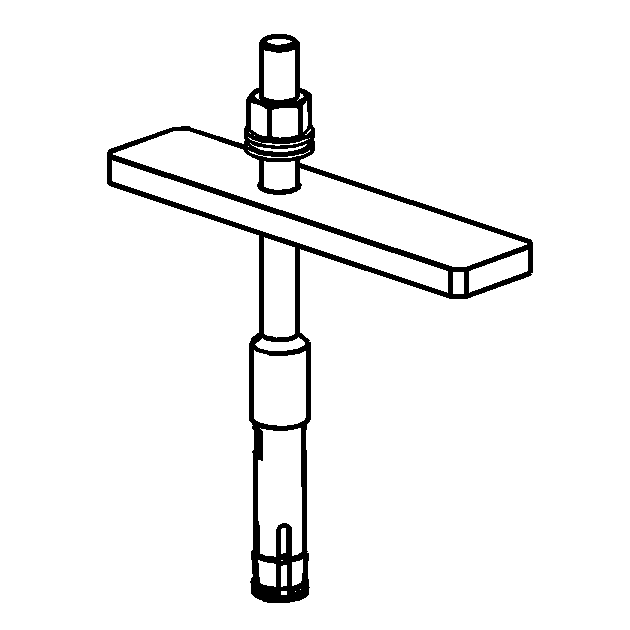

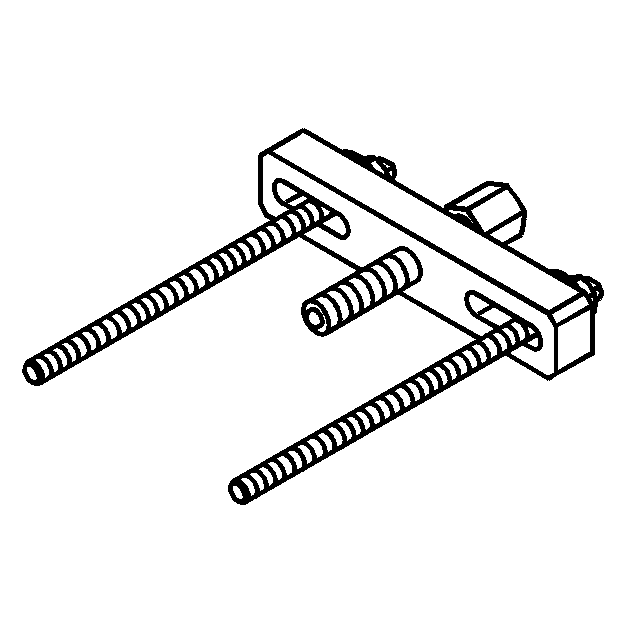

J 810700 Center Bar Puller |
|

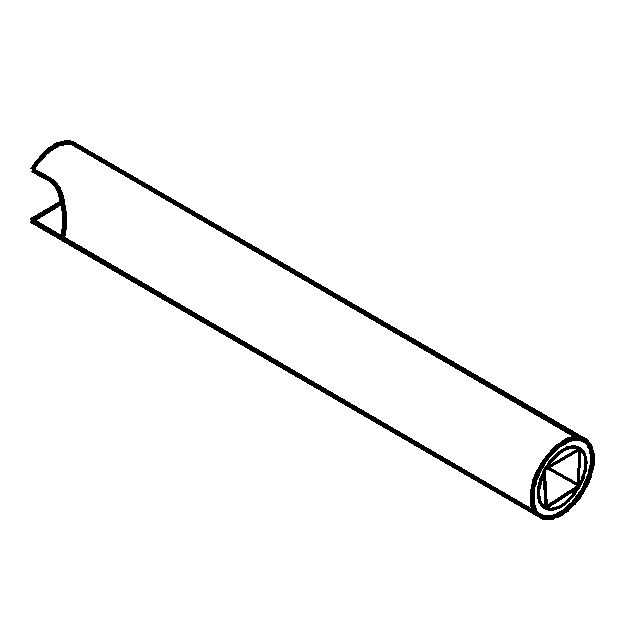

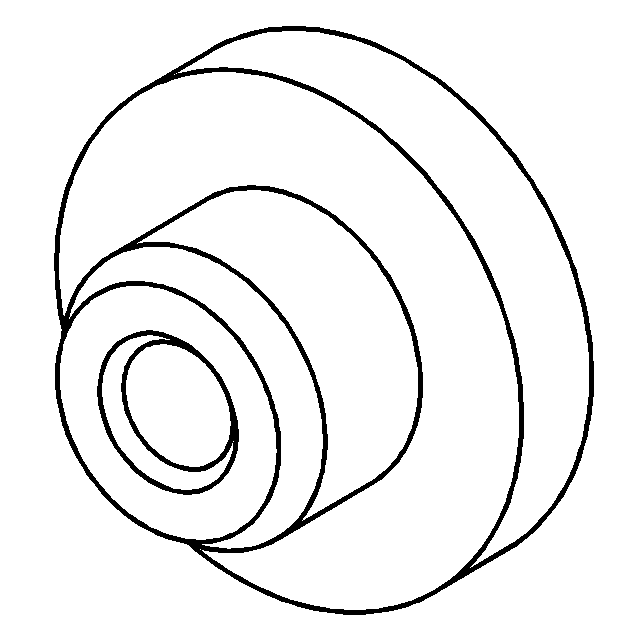

J 810704 Steering Column Center Bar Puller |
|

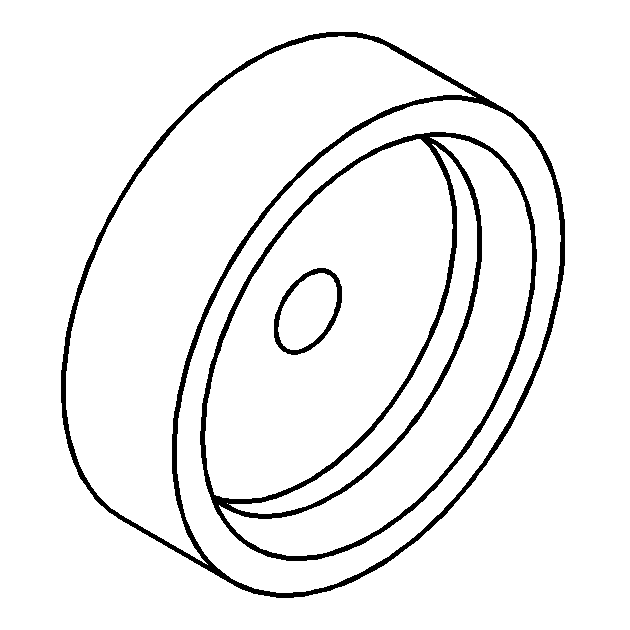

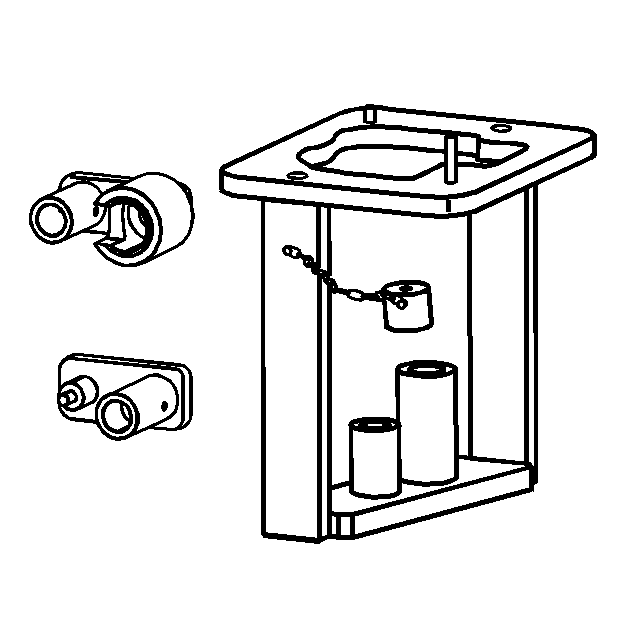

J 810721 Support Base |
|

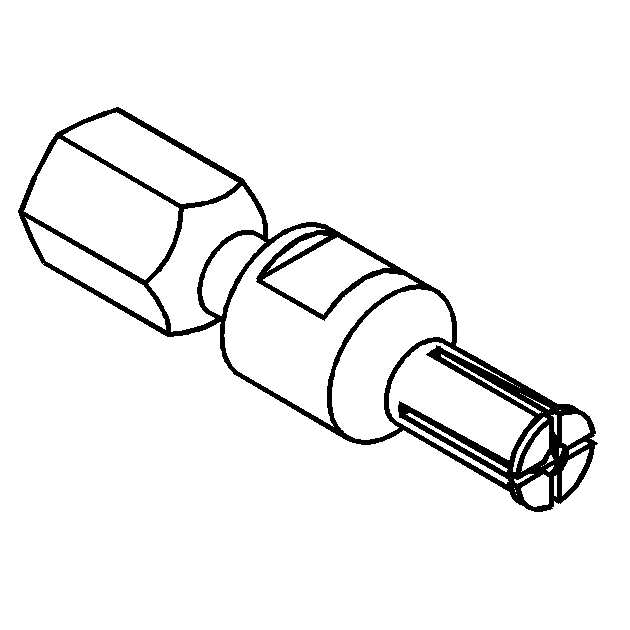

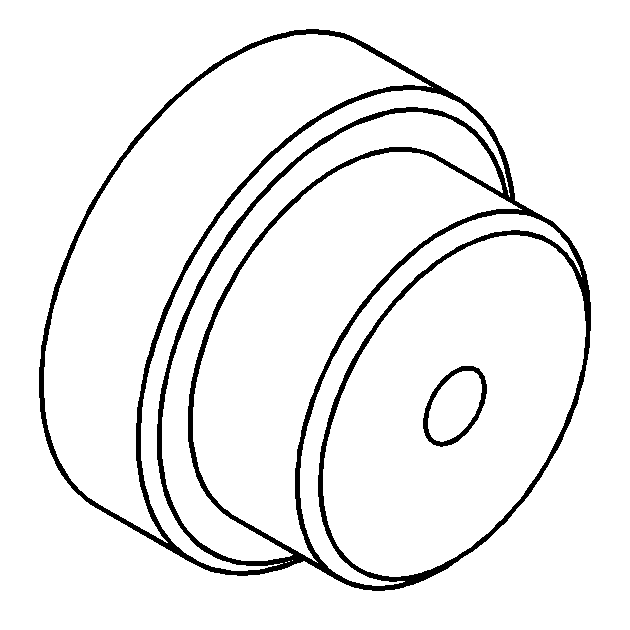

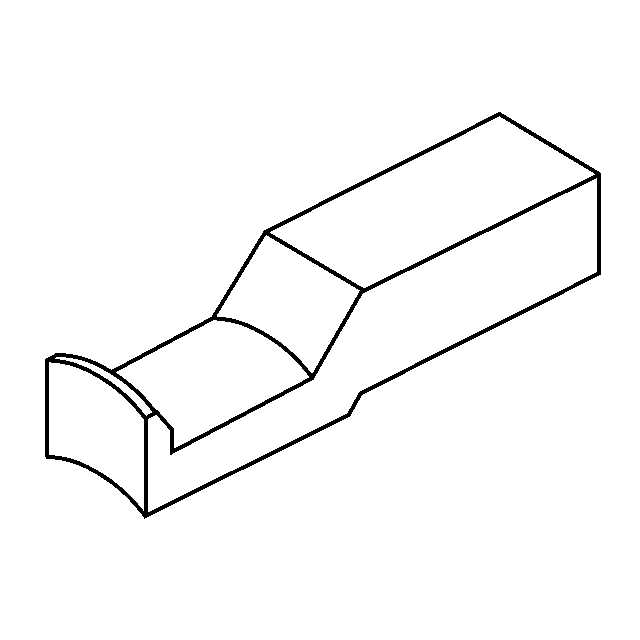

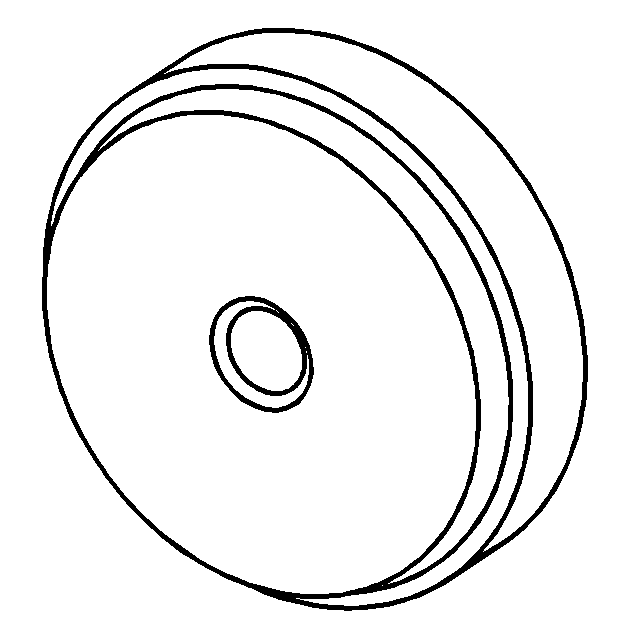

J 840733 Driver |
|

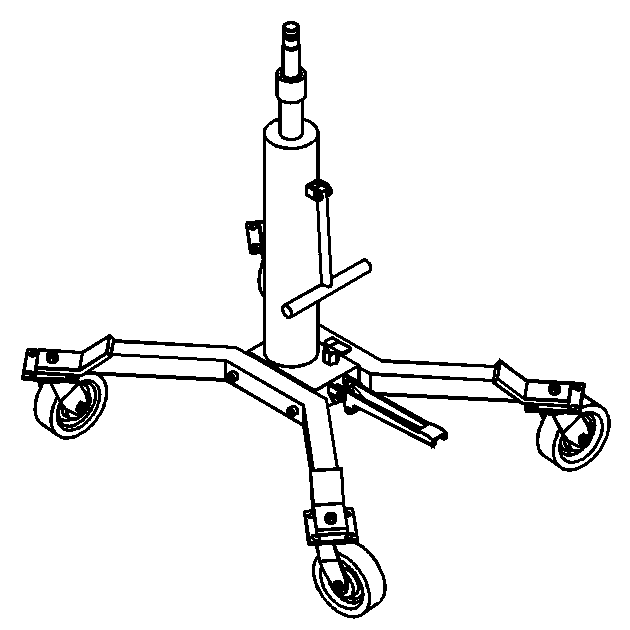

J 9703392 Hydraulic Jack |
|
M 680770 Universal Sliding Mallet |
|

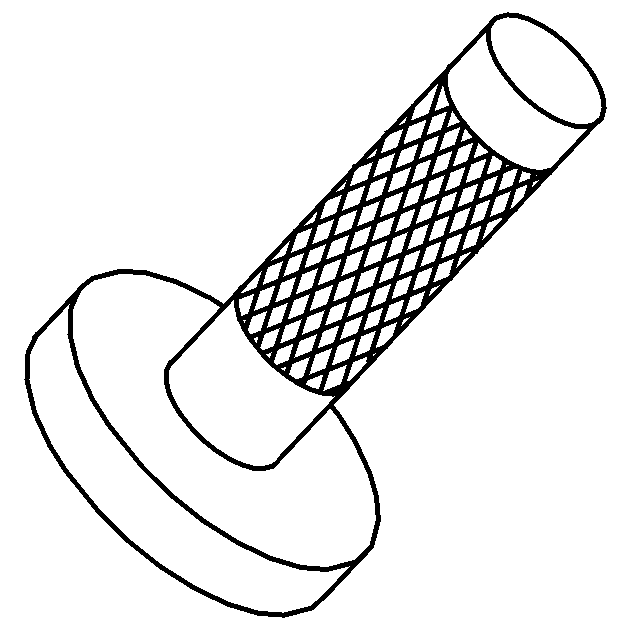

M 840911 Universal Handle for Pullers and Installers |
|

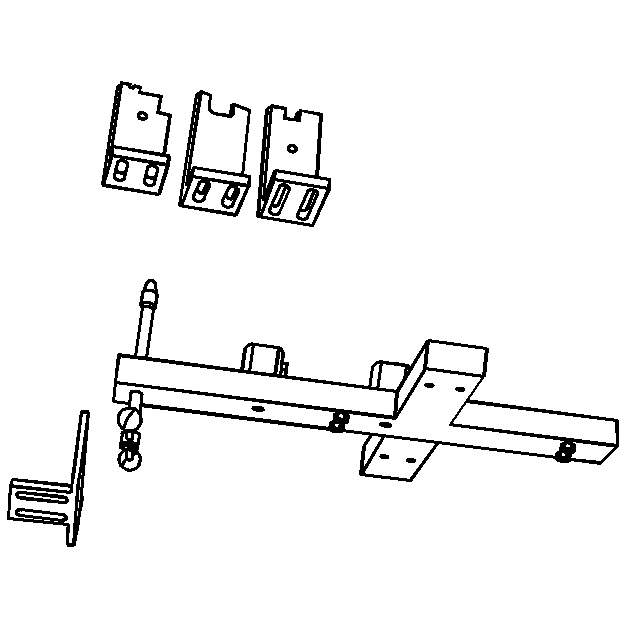

R 0006747-1 Engine and Transmission Removal and Installation Device Crossmember |
|
R 0006747-5 Transmission Support, Attach to R 0006747-1 |
|
R 0006749 Support Base for Universal Pullers |
|

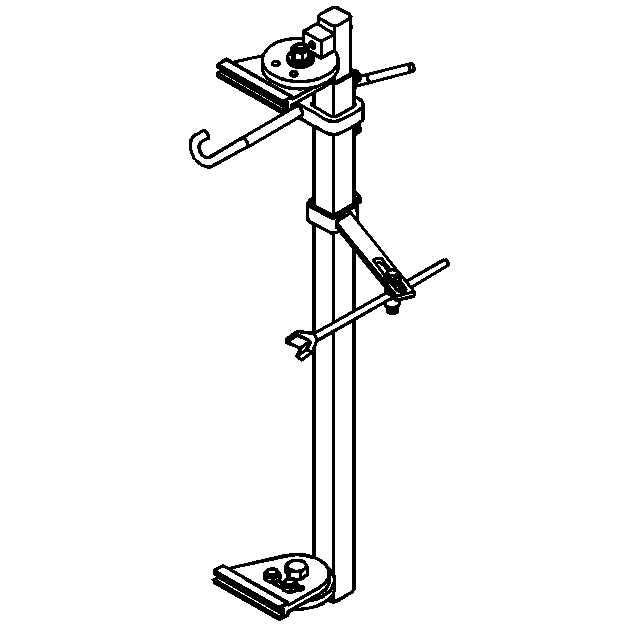

R 0007758 Device to Attach the Transmission |
|
R 0007761 Universal Handle 300 mm for Pullers and Installers |
|
R 0007770 Support to Assemble and Disassemble the Gear Assembly |
|
R 0407008 Device for Removing the Countershaft Bearing, Use with R 0007761 |
|
R 0407009 Driver Countershaft Front Bearing, Use with R 0007761 |
|
R 0407010 Puller and Driver ?#8201;Input Shaft Needle Bearing, Use with R 0007761 |
|
R 0407011 Puller Differential Carrier Taper Bearing Cap, Use with R 0007761 |
|
R 0407012 Driver Differential Carrier Cone Bearing Cap, Use with R 0007761 |
|
R 0407013 Gearshift Device Bushing Puller, Use with M 6807770 |
|
R 0407014 Gearshift Device Bushing Driver, Use with M 6807770 |
|
R 0407015 Device for Removing the Speed Gear Engaging Cable |
|
S-9406190 Shift Rod Guide Bushing Installer |
|

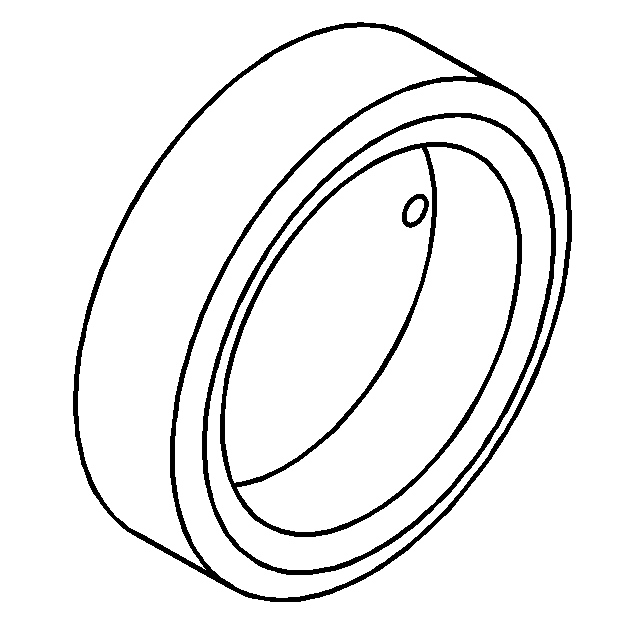

S-9407194 Speed Sensor Impeller Ring Installer |
|
S-9407195 Pinion Gear Case Bearing Installer |
|
S-9407197 Device to Measure the Pinion Gear Case Bearings Preload, F13/15 |
|

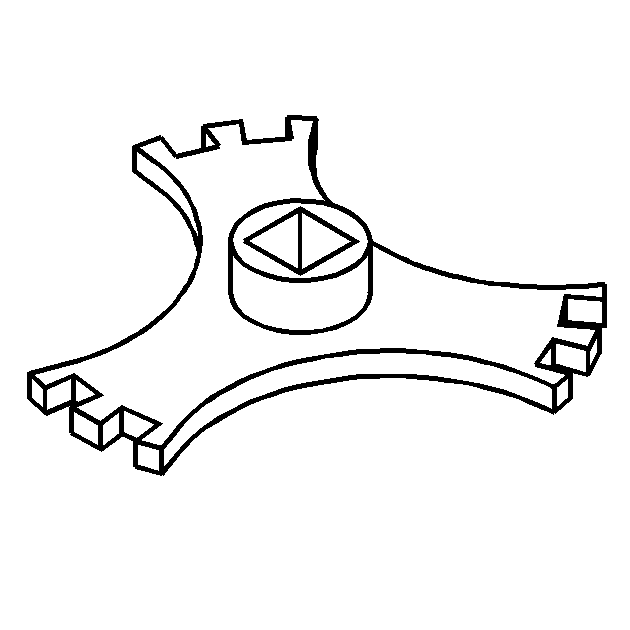

S-9407198 Wrench to Loosen and Tighten the Differential Bearing Race, F13/15 |
|

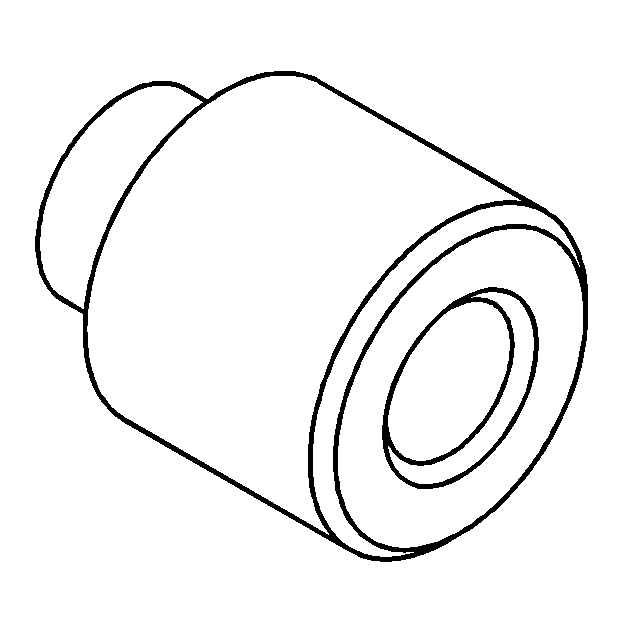

S-9707500 Axle Shaft Seal Installer |
|
T-0207928 Retainer Remover |
|
T-0307000 Extractor and Driver F17 Plus Transmission Assembly |
|
T-9804669 Axle Shaft Seal Installer |
|
T-9804678 F23 RPM Sensor Ring Gear Puller. Remove in the Press 69607346 Optional |
|

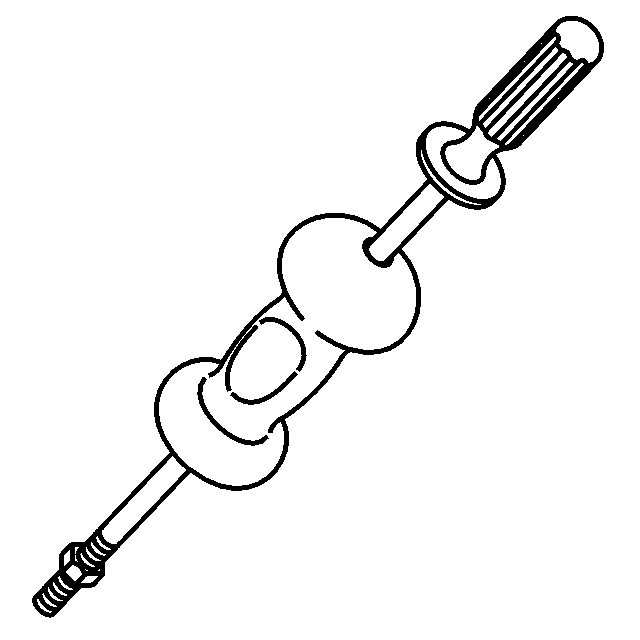

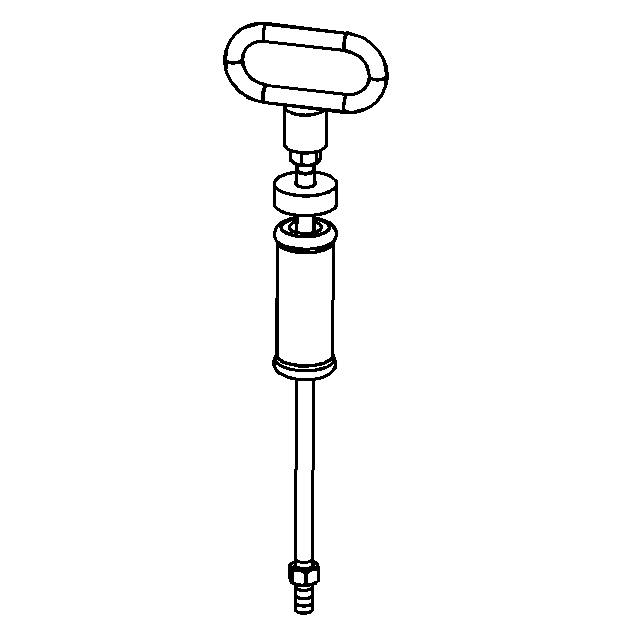

T-9807671 Slide Hammer |
|
X-0206951 Front Suspension Bushing Puller and Installer |
