Chevrolet Sonic Repair Manual: Special Tools

Illustration

Tool Number/Description

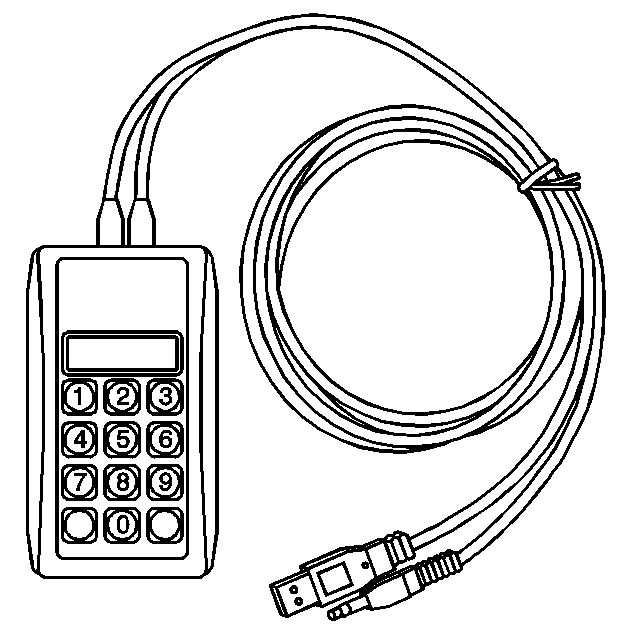

EL–50334–20

Multi-Media Interface Tester (MIT)

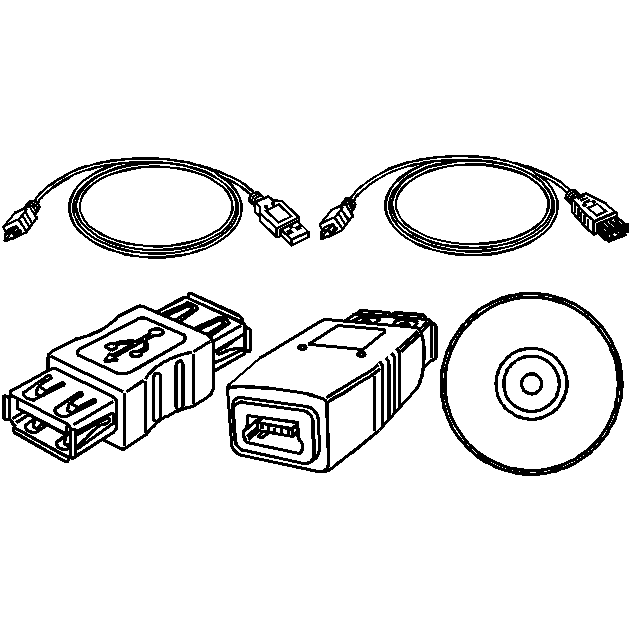

EL–50334–50

USB Cable and Adapter Kit

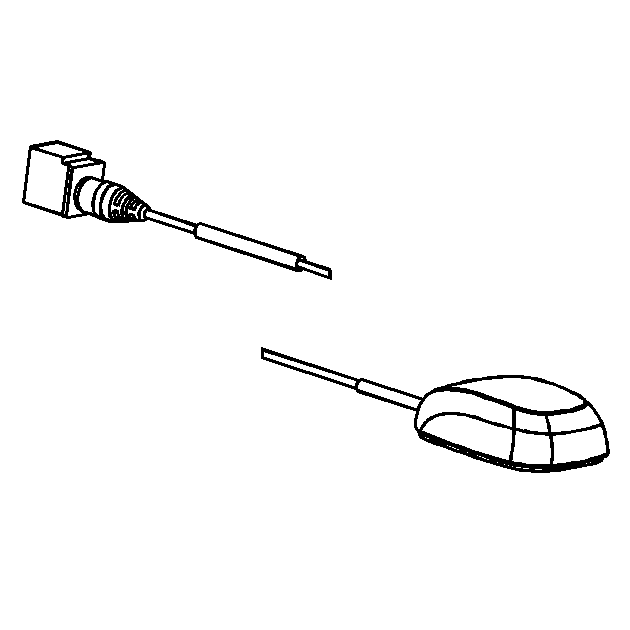

EL-48028

Digital Radio Test Antenna

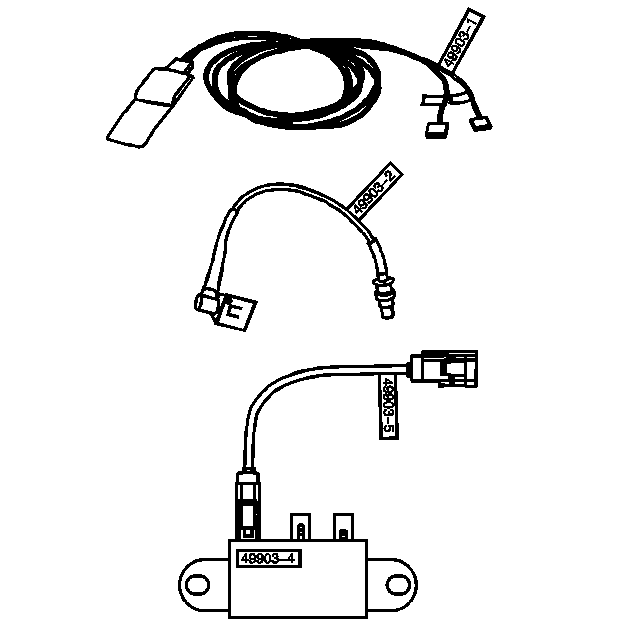

EL-49903

OnStar Antenna Diagnostic Tool Kit
