Chevrolet Sonic Repair Manual: Special Tools
|
Illustration |
Tool Number/ Description |
|---|---|
|

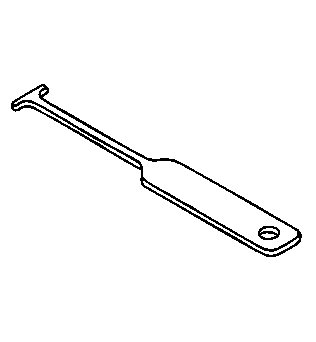

EL 42059 J 42059 Cigar Lighter Socket Remover |
Retained Accessory Power Description and Operation
Retained Accessory Power
RAP Description and Operation Block Diagram
K9Body
Control
ModuleK73Telematics
Communication
Interface
Cont ...
Defoggers
...
Other materials:
Dimensions - Body (4NB)
Point-to-point measurements are for reference only. All measurements are given
in millimeters. Use these measurements for diagnosing and estimating. Point-to-point
measurements are duplicated with tram bar pointers set at equal lengths. All die
marks, holes, slots, and fasteners are measured t ...
Liftgate Hinge Replacement
Liftgate Hinge Replacement
Callout
Component Name
Preliminary Procedures
Remove the liftgate. Refer to Liftgate Replacement.
Lower the rear of the headliner to access the inner bolts. Refer
to Headlining Trim Panel Replac ...
Fuel Tank Heat Shield Replacement
Removal Procedure
Support the fuel tank with a suitable jack.
Remove the fuel tank strap fasteners (1) and lower the fuel tank straps (2).
Remove the fuel tank heat shield fasteners (1) and remove the fuel tank
heat shield (2).
...
