Chevrolet Sonic Owner's Manual: Storing the Tire Sealant and Compressor Kit
The tire sealant and compressor kit is located in the rear storage area.
1. Lift the trim cover.

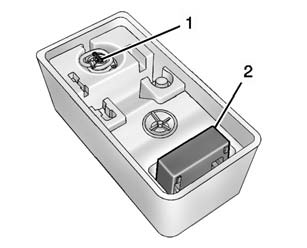

2. Remove the tire sealant canister (1) and the compressor (2).
To store the tire sealant canister and compressor:
1. Attach the sealant/air hose to the sealant canister inlet valve.
2. Return the sealant canister and the compressor to their original storage location.
Using the Tire Sealant and Compressor Kit without Sealant to Inflate a Tire
(Not Punctured)
The kit includes:
1. Sealant Canister Inlet Valve
2. Sealant/Air Hose
3. Base of Sealant Canister
4. Tire Sealant Canister
5. On/Off Button
6. Slot on Top of Compressor
7. Pressure Deflation ...
