Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the sunroof module. Refer to Sunroof Module Assembly Replacement. |
|
|
1 |

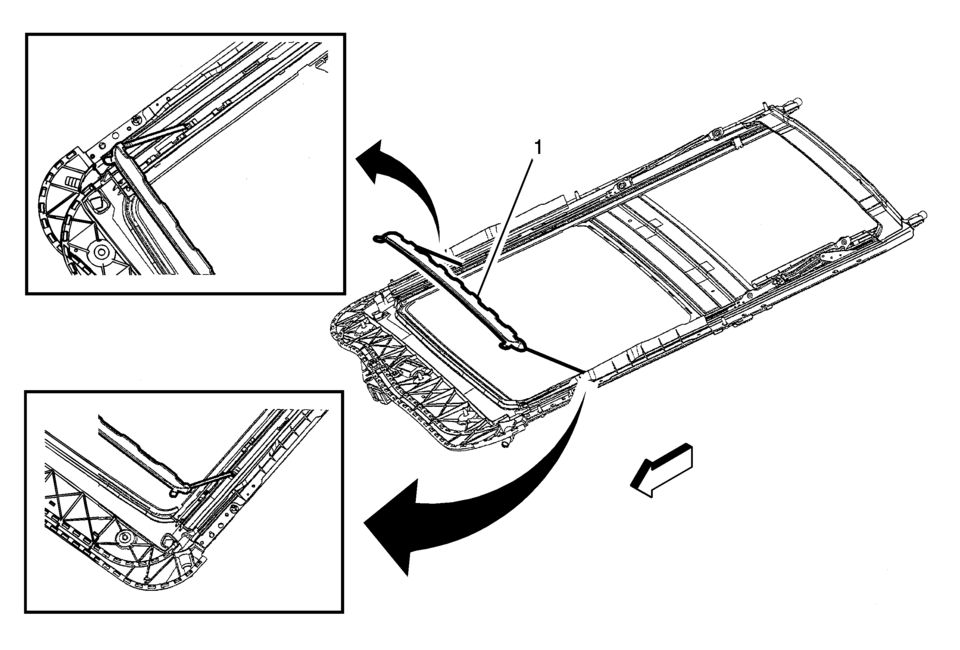

Sunroof Air Deflector Tip: Cycle the sunroof window to the full rearward position. |
