Callout |
Component Name |
|---|---|
|
Preliminary Procedure

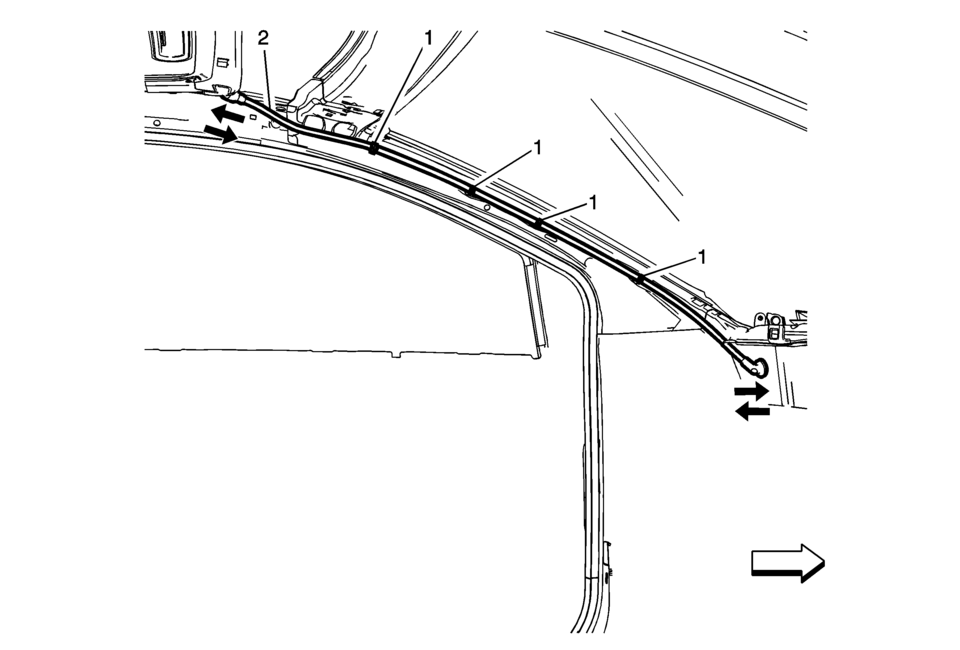

It is only necessary to lower the headliner. Only do those steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement. |
|
|
1 |
Sunroof Housing Front Drain Hose Retainers (Qty:?€‰4) |
|
2 |
Sunroof Housing Front Drain Hose Procedure
|
Roof Drainage
Sunroof Housing Rear Drain Hose ReplacementCigarette Lighter Receptacle Replacement
Special Tools
EL-42059 Cigar Lighter Socket Remover .
For equivalent regional tools. Refer to Special Tools
Removal Procedure
Remove the auxiliary power outlet fuse from the fuse block.
Remove the receptacle:
Look into the receptacle(2). There are two 3?€‰m ...
Evaporative Emission Control System Description
Typical Evaporative Emission (EVAP) System Hose Routing Diagram
(1)
Evaporative Emissions (EVAP) Purge Solenoid Valve
(2)
EVAP Canister
(3)
EVAP Vapor Tube
(4)
Vapor Recirculation Tube
(5) ...
Automatic Transmission Range Selector Lever Replacement
Removal Procedure
Set the park brake and chock the wheels.
Disconnect the transmission range selector lever cable
terminal (1) from the transmission manual shift lever pin.
Press the locking tabs inward in order to release
the transmission range selector lev ...
