Throttle Body Heater Outlet Pipe Replacement

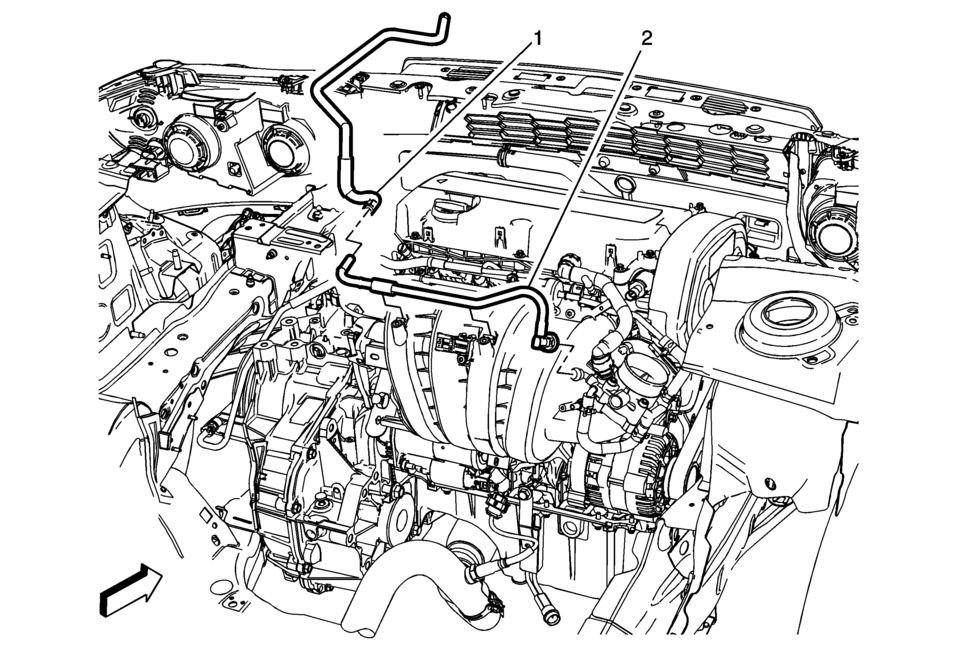

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling.
1	Engine Coolant Air Bleed Hose
2	Throttle Body Heater Outlet Pipe Procedure Disconnect throttle body heater outlet pipe from the engine coolant air bleed hose. Unclip the throttle body heater inlet pipe from the middle of the intake manifold. Remove the throttle body heater outlet pipe from the throttle body.
