Chevrolet Sonic Repair Manual: Timing Belt Idler Pulley Removal

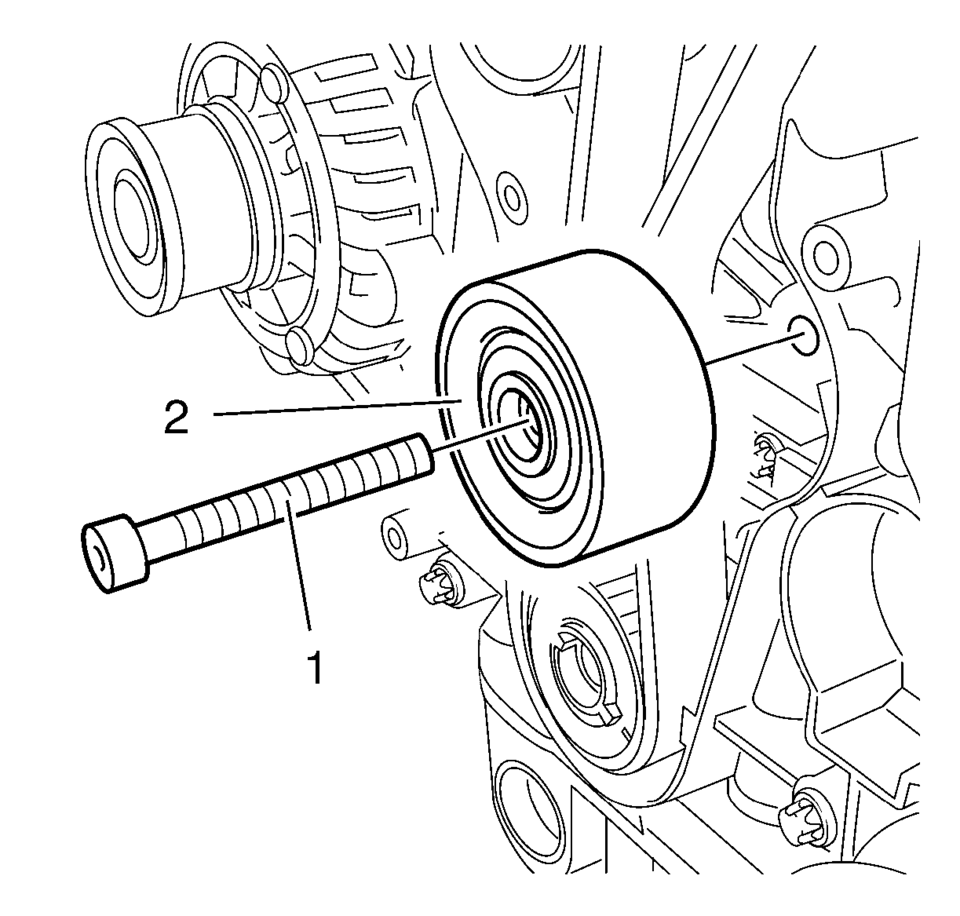

- Remove the timing belt idler pulley bolt (1).
- Remove the timing belt idler pulley (2).
Timing Belt Idler Pulley Installation
Special Tools
EN-45059 Angle Meter
For equivalent regional tools, refer to Special Tools.
Caution: Refer to Fastener Caution.
Caution: Refer to Torque-to-Yield Fastener Ca ...
Timing Belt Idler Pulley Replacement
Timing Belt Idler Pulley Replacement
Callout
Component Name
Preliminary Procedure
Remove the timing belt. Refer to Timing Belt ...
