Timing Belt Lower Front Cover Replacement

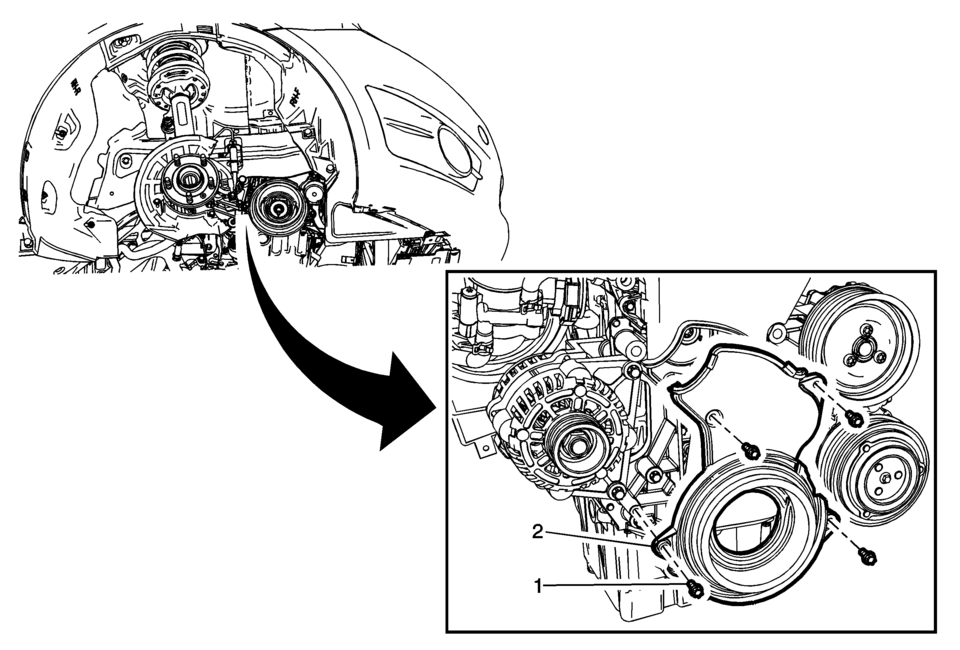

Callout

Component Name

Preliminary Procedures

  1. Remove the front wheelhouse liner inner front extension. Refer to Front Wheelhouse Liner Inner Front Extension Replacement.
  2. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement.
  3. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement.

1

Timing Belt Lower Front Cover Fastener (Qty: 4)

Caution:

Refer to Fastener Caution.

Tighten


6 Y (53 lb in)

2

Timing Belt Lower Front Cover

Procedure

Transfer parts as necessary.

Timing Belt Lower Front Cover Removal
Remove the 4 timing belt lower front cover bolts (2). Remove the timing belt lower front cover (1). ...

Timing Belt Rear Cover Installation
Re-cut the 4 rear timing belt cover threads. Install the timing belt rear cover (1). Caution: Refer to Fastener Caution. Note: Service may offer bolts that are n ...
