Chevrolet Sonic Repair Manual: Timing Belt Rear Cover Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Valvetrain / Valvetrain Timing / Timing Belt Rear Cover Replacement



Timing Belt Rear Cover Replacement

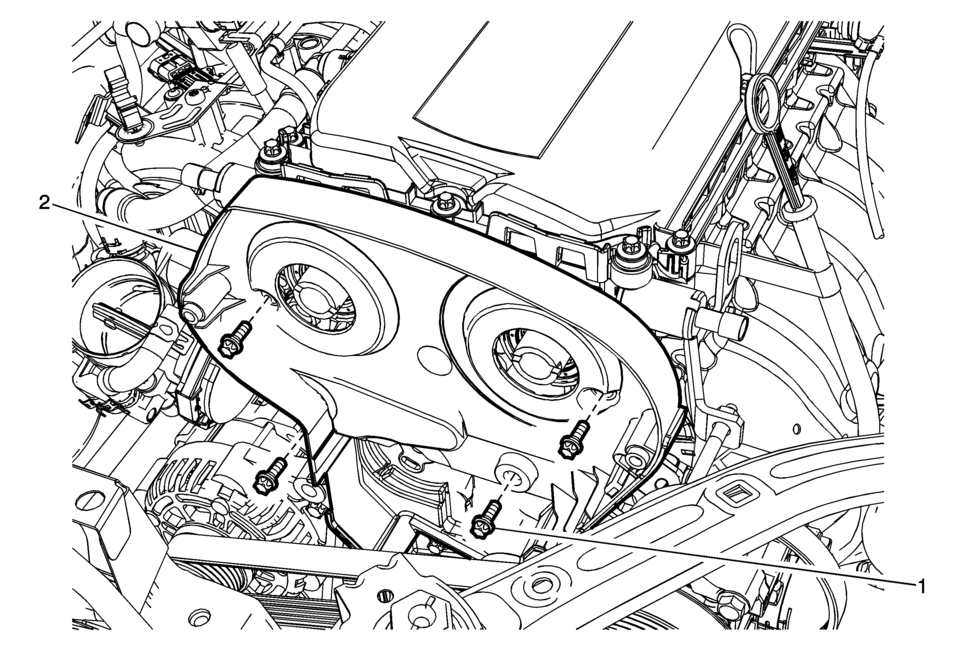

Callout

Component Name

Preliminary Procedures

Remove the camshaft sprocket. Refer to Camshaft Sprocket Replacement

1

Timing Belt Rear Cover Fastener (Qty 4)

Caution:

Refer to Fastener Caution.

Procedure

  1. New bolt must be used whenever the cover is removed.
  2. Apply locking compound to the NEW timing belt rear cover bolts.
Tighten


6 Y (53 lb in)

2

Timing Belt Rear Cover

Procedure

Transfer parts as necessary.

Timing Belt Rear Cover Removal
Remove and DISCARD the 4 timing belt rear cover bolts (2). Remove the timing belt rear cover (1). ...

Timing Belt Removal
Special Tools EN-6333 Locking Pin EN-6340 Locking Tool For equivalent regional tools, refer to Special Tools. Note: The timing belt drive gear and oil pump housing must align. ...
