Chevrolet Sonic Repair Manual: Timing Belt Tensioner Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Valvetrain / Valvetrain Timing / Timing Belt Tensioner Installation

Special Tools

EN-45059 Angle Meter


    Clean the timing belt tensioner thread.
  1. Clean the timing belt tensioner thread.

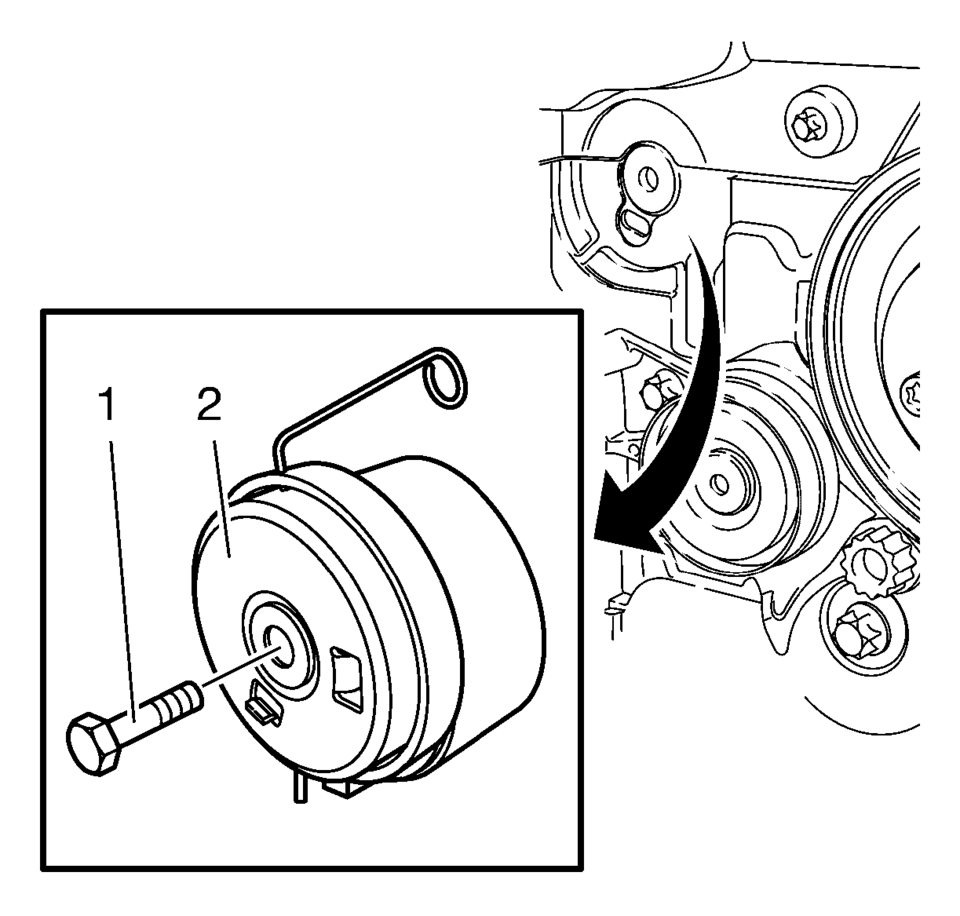

  2. Install the timing belt tensioner (2).
  3. Caution:

    Refer to Fastener Caution.

    Caution:

    Refer to Torque-to-Yield Fastener Caution.

  4. Install a NEW timing belt tensioner bolt (1) and tighten the bolt in 3 passes using the EN-45059 meter.
    1. First pass to 20 Y (15 lb ft)

      .

    2. Second pass to an additional 120 degrees

      .

    3. Final pass to an additional 15 degrees

      .
