Timing Belt Upper Front Cover Replacement

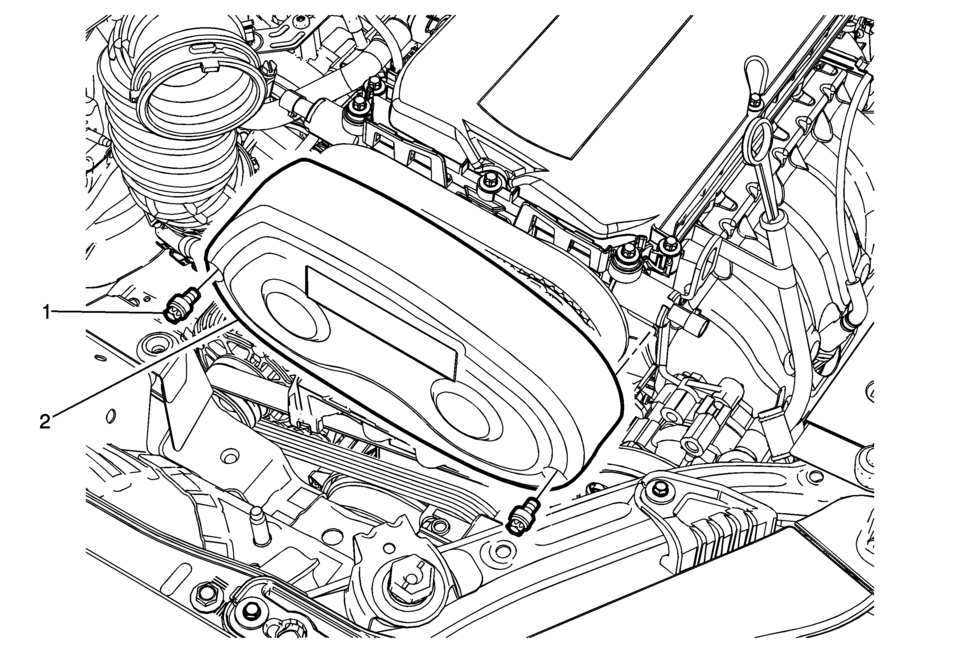

Callout

Component Name

1

Timing Belt Upper Front Cover Fastener (Qty: 2)

Caution:

Refer to Fastener Caution.

Tighten


6 Y (53 lb in)

2

Timing Belt Upper Front Cover

Timing Belt Upper Front Cover Removal
Remove the 2 timing belt upper front cover bolts (2). Remove the timing belt upper front cover (1). ...

Timing Belt Idler Pulley Installation
Special Tools EN-45059 Angle Meter For equivalent regional tools, refer to Special Tools. Caution: Refer to Fastener Caution. Caution: Refer to Torque-to-Yield Fastener Ca ...
