Timing Chain Tensioner Replacement

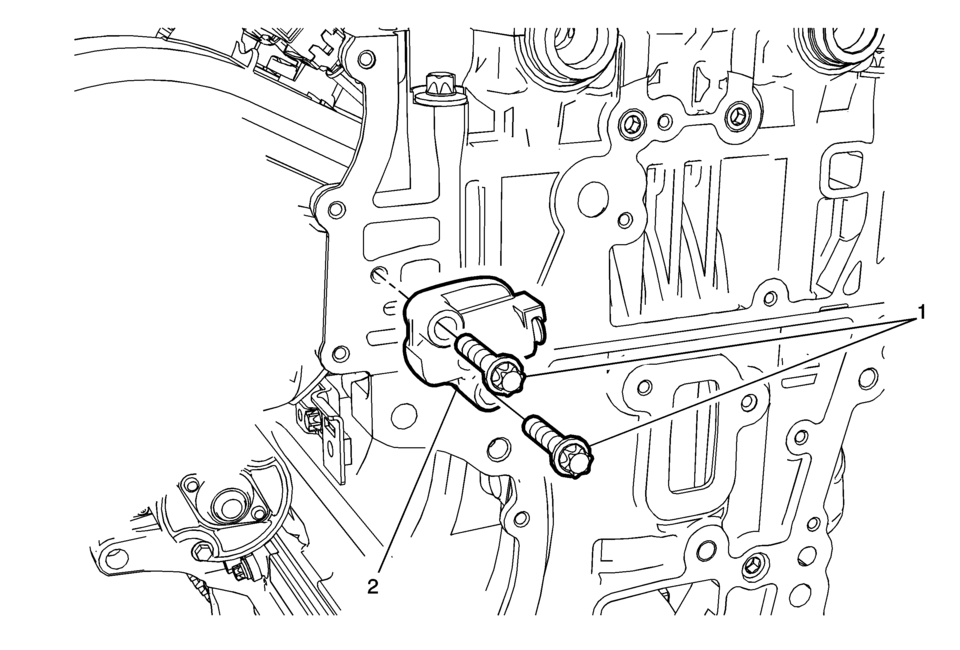

Callout	Component Name
Preliminary Procedure Remove the camshaft timing chain . Refer to Camshaft Timing Chain Replacement.
1	Timing Chain Tensioner Fastener (Qty: 2) Caution: Refer to Fastener Caution. Tighten 8 Y (71 lb in)
2	Timing Chain Tensioner

Timing Chain Tensioner Removal

Remove the 2 timing chain tensioner bolts (1). Remove the timing chain tensioner (2). ...
