Chevrolet Sonic Repair Manual: Transmission Mount Bracket Replacement - Left Side

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Transmission Mounts / Transmission Mount Bracket Replacement - Left Side

Removal Procedure
  1. Remove the left transmission mount. Refer to Transmission Mount Replacement - Left Side.

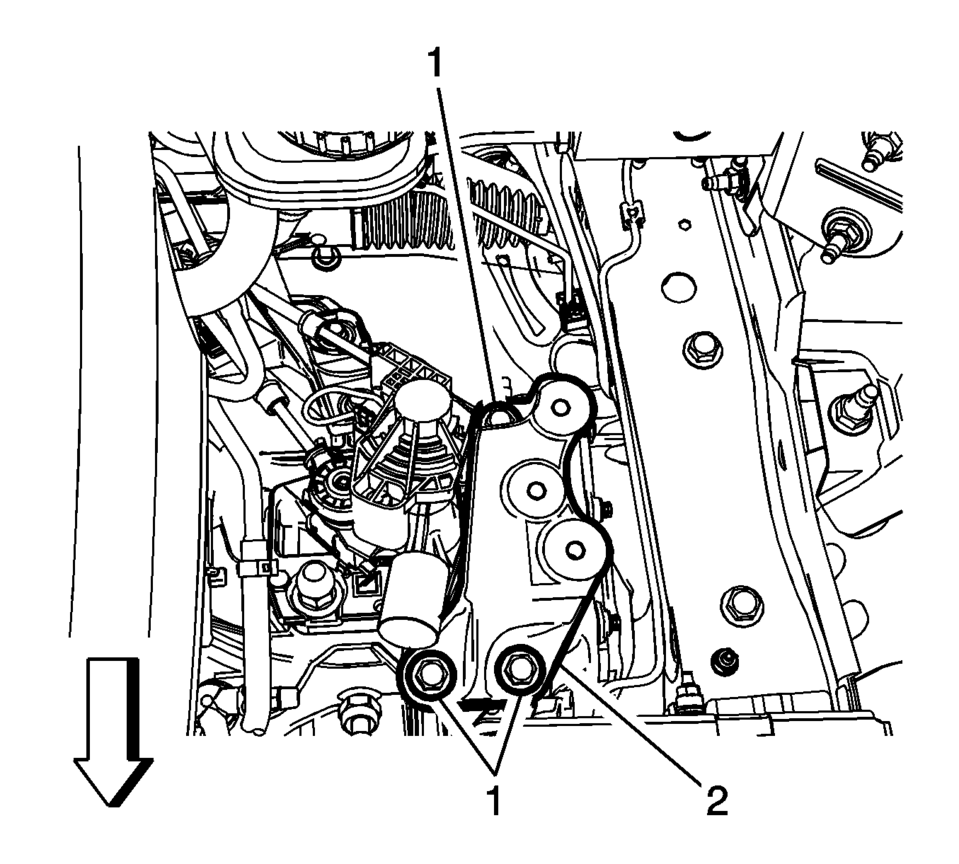

  2. Remove the three left transmission mount bracket to transmission bolts (1).
  3. Remove the left transmission mount bracket (2) from the transmission.
Installation Procedure

    Install the left transmission mount bracket (2) to
  1. Install the left transmission mount bracket (2) to the transmission.
  2. Caution:

    Refer to Fastener Caution.

  3. Install the left transmission mount bracket to transmission bolts (1) and tighten to 62 Y (46 lb ft)

    .

  4. Install the left transmission mount. Refer to Transmission Mount Replacement - Left Side.
