Chevrolet Sonic Repair Manual: Turbocharger Assemble

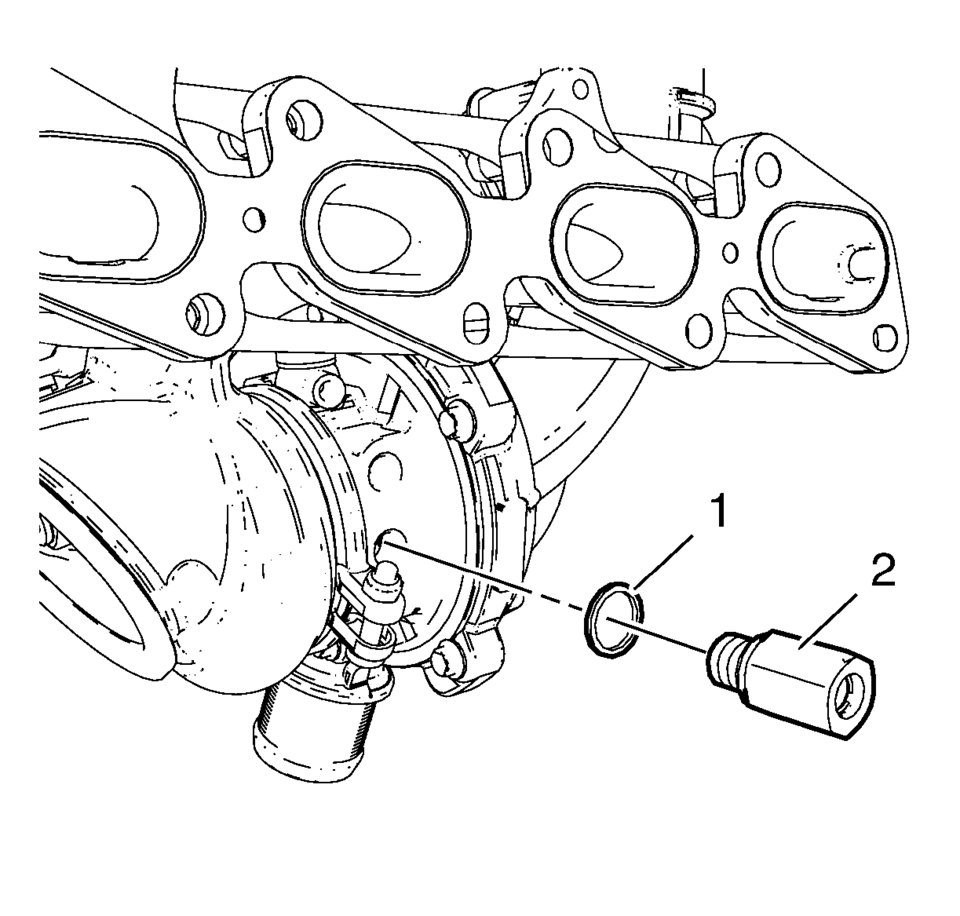

- Install the NEW quick fitting connector (2) and a NEW seal ring (1) to the
turbocharger and tighten to 20 Y (15 lb ft)
.
- Inspect the turbocharger coolant pipes for ridges and damage.

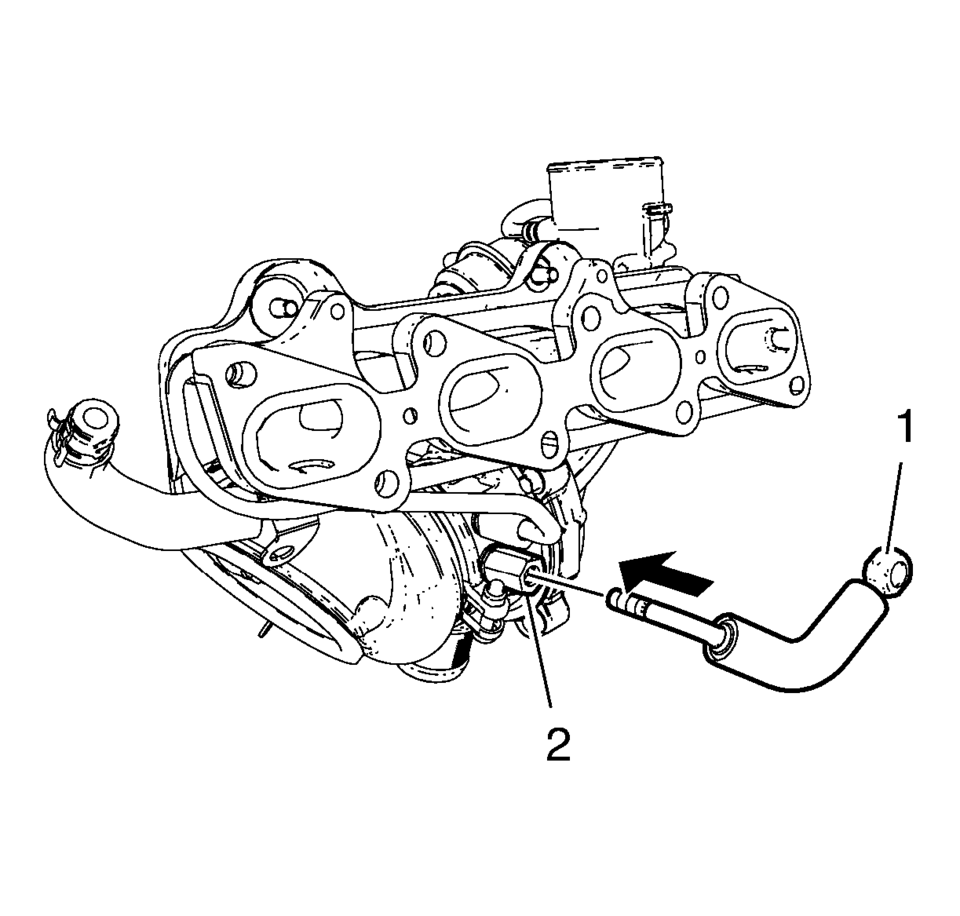

- Install the turbocharger coolant feed pipe (1) to the quick fitting connector (2) by pushing in direction of the arrow until an audible click is heard.
- Use the same procedure for the turbocharger coolant return pipe and the turbocharger coolant return pipe quick fitting connector.

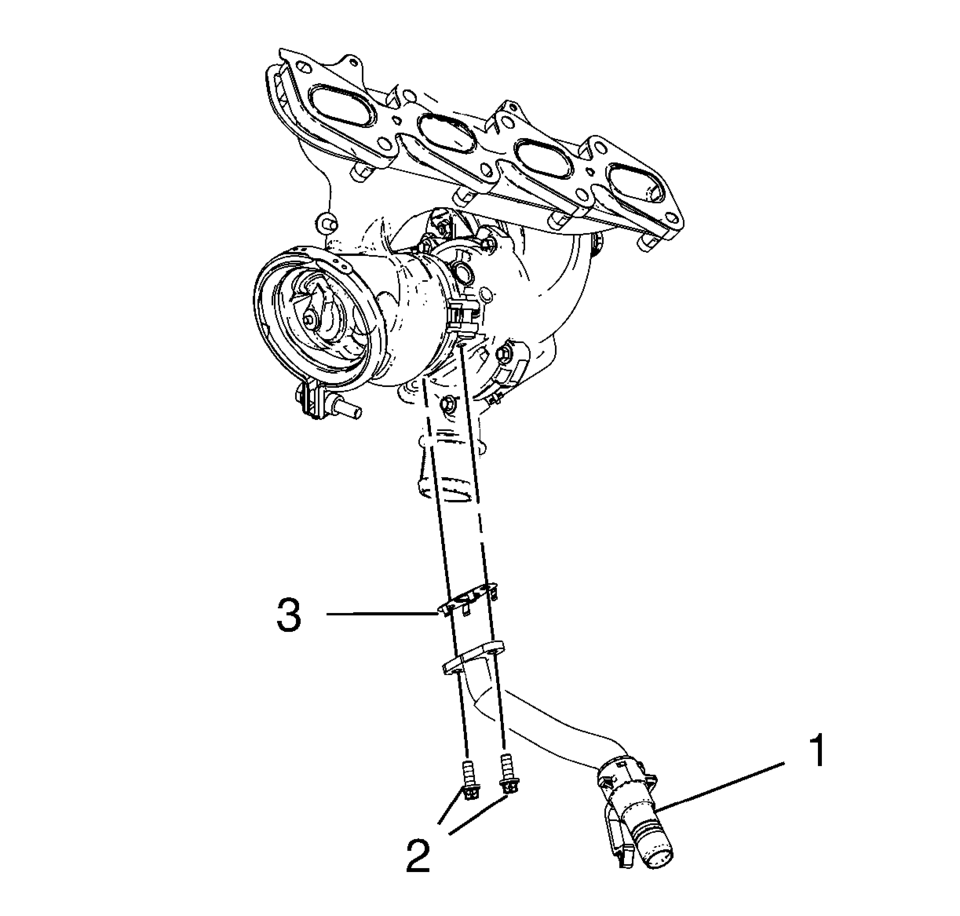

- Install the turbocharger oil return pipe (1) and a NEW sealing (3) to the turbocharger.
- Install the 2 turbocharger oil return pipe bolts (2) and tighten to
8 Y (71 lb in)
.
Caution:
Refer to Fastener Caution.
Forced Induction
...
Turbocharger Cleaning and Inspection
Cleaning Procedure
Clean all sealing surfaces.
Clean all threads if necessary.
Inspection Procedure
Inspect the wastegate regulator mechanism (1) fo ...
