Turbocharger Coolant Return Pipe Replacement

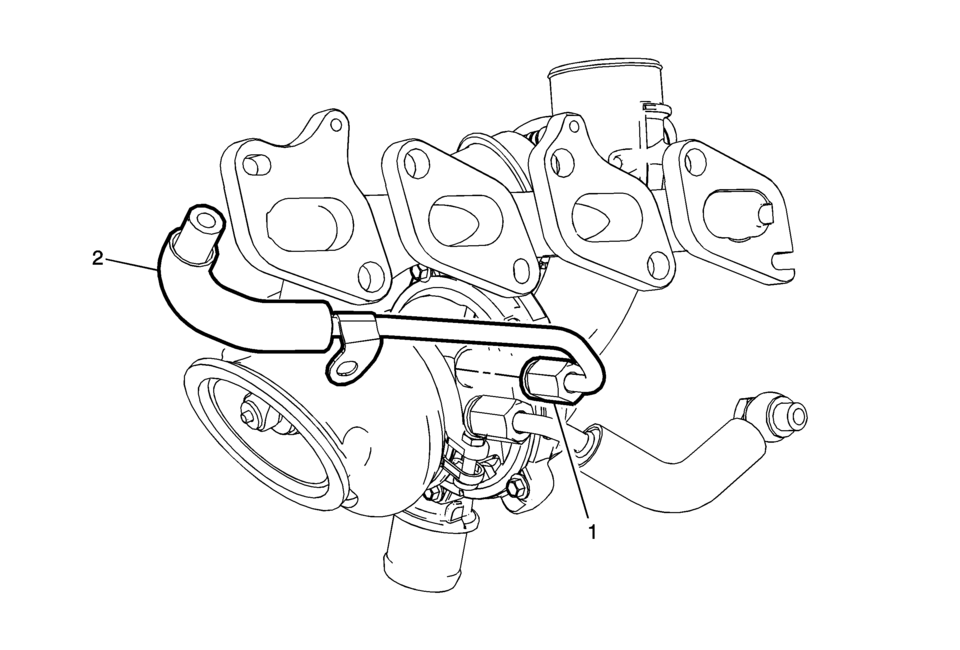

Callout

Component Name

Preliminary Procedure

Remove the turbocharger. Refer to Turbocharger Replacement.

1

Turbocharger Fastener

Caution:

Refer to Fastener Caution.

Procedure

Replace seals with NEW seals.

Tighten


8 Y (71 lb in)

2

Turbocharger Coolant Return Pipe
