Chevrolet Sonic Repair Manual: Turn Signal Multifunction Switch Replacement

Chevrolet Sonic Repair Manual / Chassis / Steering / Steering Wheel and Column / Turn Signal Multifunction Switch Replacement


..

Turn Signal Multifunction Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the upper trim cover and the lower trim cover from the steering column. Refer to Steering Column Lower Trim Cover Replacement.

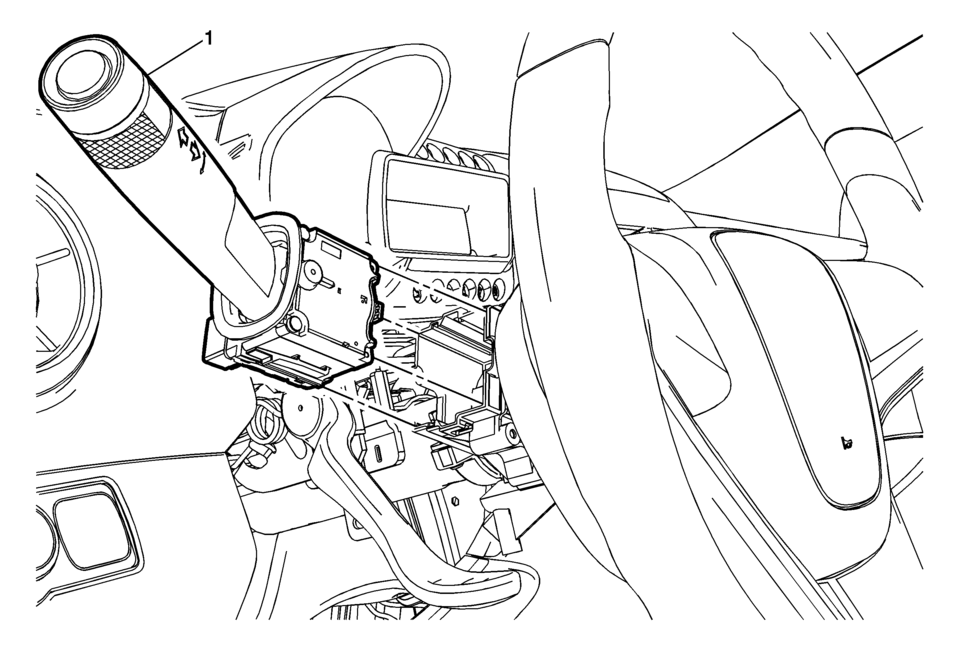

1

Turn Signal Switch

Procedure

  1. Disconnect any electrical connectors as necessary.
  2. Release the plastic retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.
