Chevrolet Sonic Repair Manual: Water Pump Pulley Removal

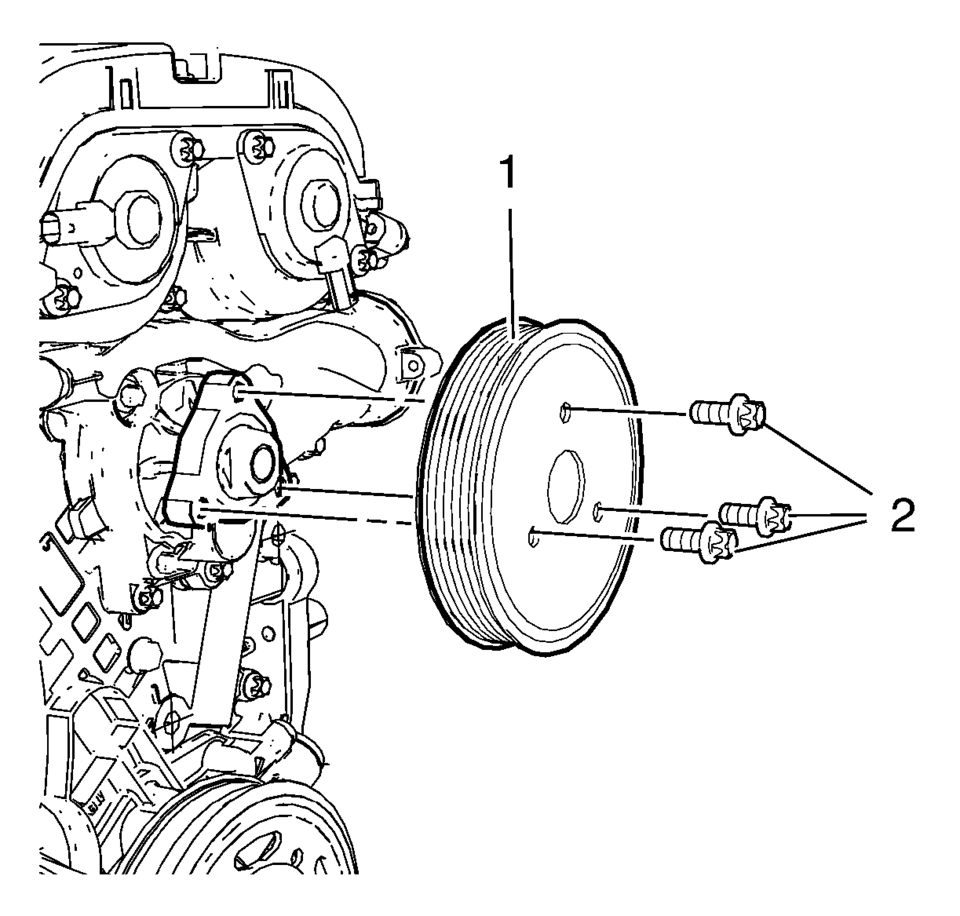

- Loosen the 3 water pump pulley bolts (2) while holding up the water pump pulley hub with a wrench.
- Remove the 3 water pump pulley bolts (2).
- Remove the water pump pulley (1).
Water Pump Pulley Installation
Note: Counterhold the crankshaft balancer. The belt has to be
installed for this procedure.
Install the water pump pulley (2) to the water pump (3).
Caution: R ...
Water Pump Pulley Replacement (LUV)
Removal Procedure
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement.
Remove the engine mount bracket. Refer to Engine Mount Bracket Replacement
- Right ...
