Chevrolet Sonic Repair Manual: Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Chevrolet Sonic Repair Manual / Chassis / Wheels/Tires / Wheels / Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

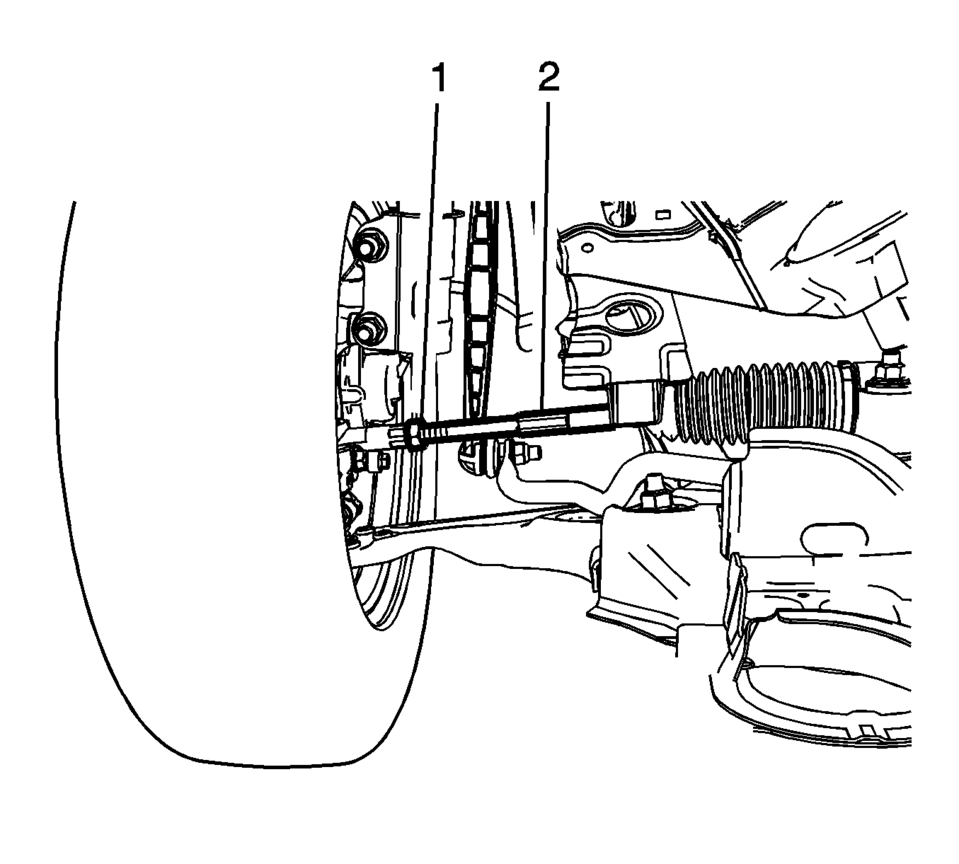

    Ensure that the steering wheel is set in a straight ahead position.
  1. Ensure that the steering wheel is set in a straight ahead position.
  2. Loosen the tie rod jam nut (1).
  3. Adjust the toe to specification by turning the inner tie rod (2). Refer to Wheel Alignment Specifications.
  4. Caution:

    Refer to Fastener Caution.

  5. Tighten the tie rod nut (1) to 60 Y (44 lb ft)

    .
