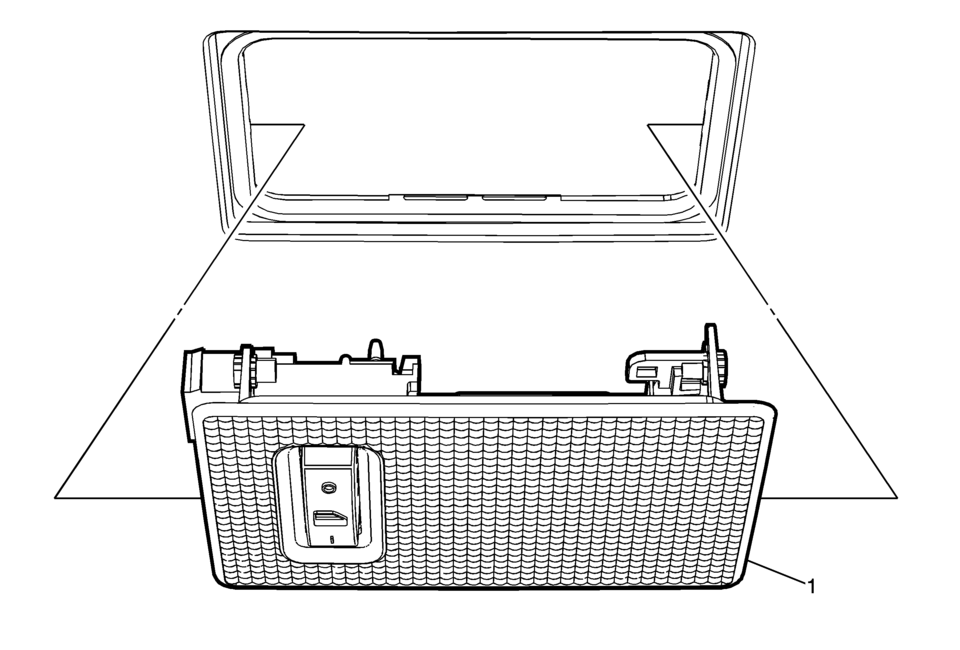

Windshield Header Courtesy Lamp Replacement

Callout

Component Name

1

Windshield Header Courtesy Lamp

Procedures

  1. Grasp the courtesy lamp assembly and pull downward to release the retainer clips securing the courtesy lamp assembly to the headliner.
  2. Disconnect the electrical connections.
