Air Conditioning Clutch Assembly Replacement

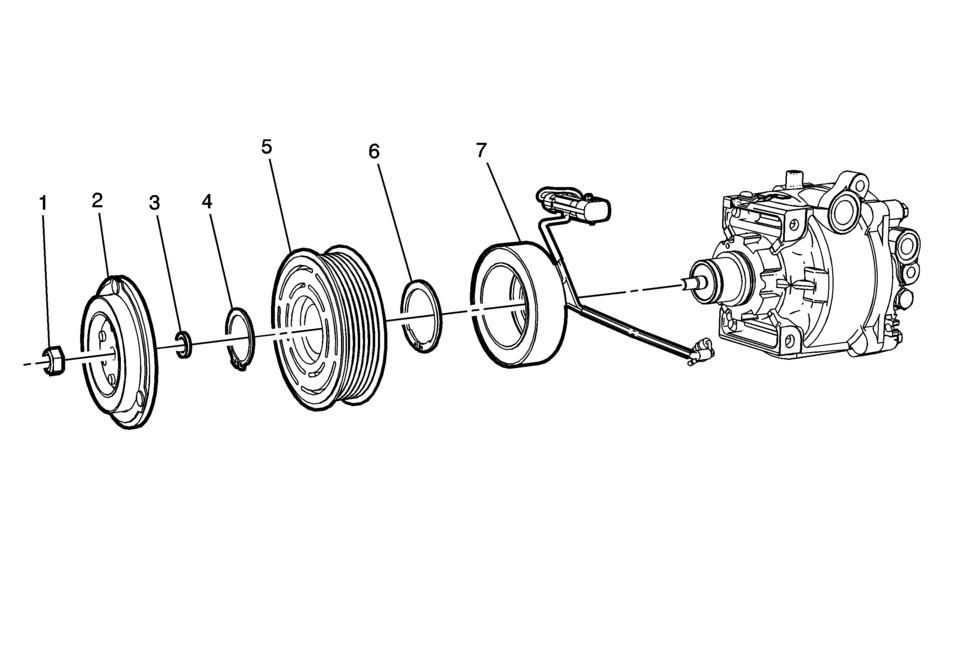

Callout

Component Name

Preliminary Procedure

Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement.

1

Air Conditioning Compressor Clutch Nut

Caution:

Refer to Fastener Caution.

Procedure

Use the CH-37872 holder to hold the compressor clutch plate from turning when removing the nut.

Special Tools

CH-37872 Clutch Plate Holder

For equivalent regional tools, refer to Special Tools.

2

Air Conditioning Compressor Clutch

3

Air Conditioning Compressor Clutch Shim (Qty: 5)

4

Retaining Ring

5

Air Conditioning Compressor Pulley

6

Retaining Ring

7

Air Conditioning Compressor Coil
