Air Inlet Assembly Replacement

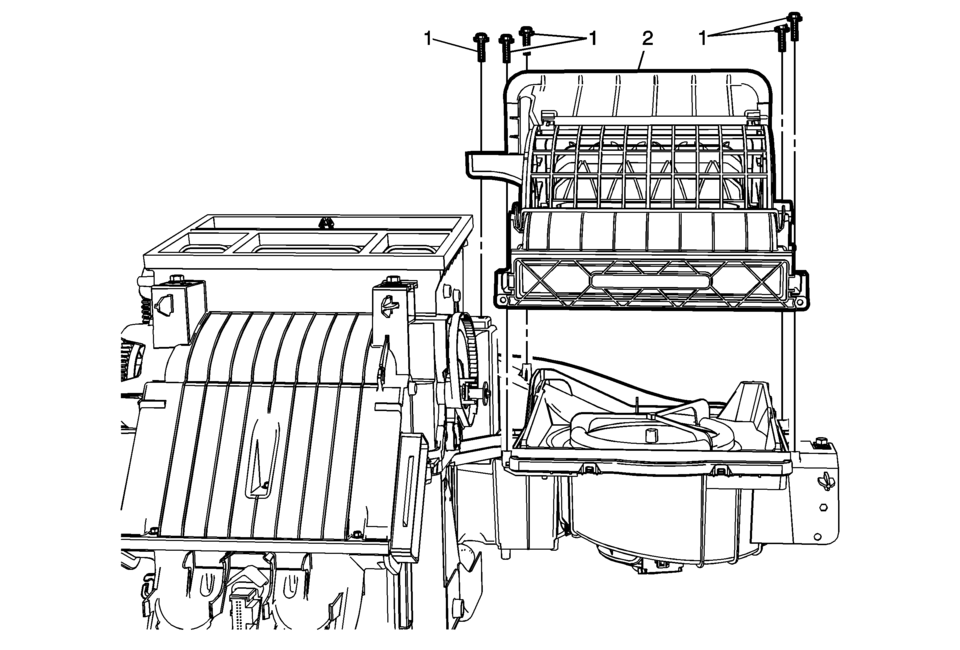

Callout

Component Name

Preliminary Procedures

  1. Remove the Heater and Air Conditioning Evaporator and Blower Module. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation.
  2. Disconnect the electrical connectors.

1

Air Inlet Housing Fastener (Qty: 5)

Caution:

Refer to Fastener Caution.

2

Air Inlet Housing
