Chevrolet Sonic Repair Manual: Air Inlet Valve Actuator Replacement (LHD)

Chevrolet Sonic Repair Manual / HVAC / Cooling / Air Inlet Valve Actuator Replacement (LHD)



Air Inlet Valve Actuator Replacement

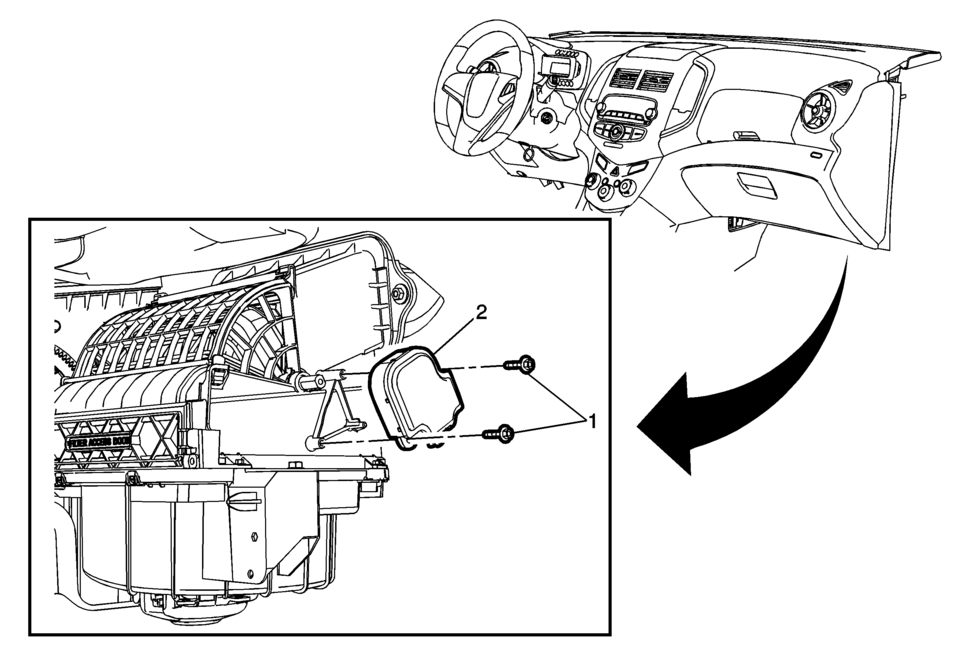

Callout

Component Name

Preliminary Procedures

  1. Remove the instrument panel compartment. Refer to Instrument Panel Lower Compartment Replacement.
  2. Reposition any wiring or hoses to gain access to air inlet valve actuator.

1

Air Inlet Valve Actuator Screw (Qty: 2)

Caution:

Refer to Fastener Caution.

2

Air Inlet Valve Actuator

Air Inlet Assembly Replacement
