Chevrolet Sonic Repair Manual: Battery Tray Replacement



Battery Tray Replacement

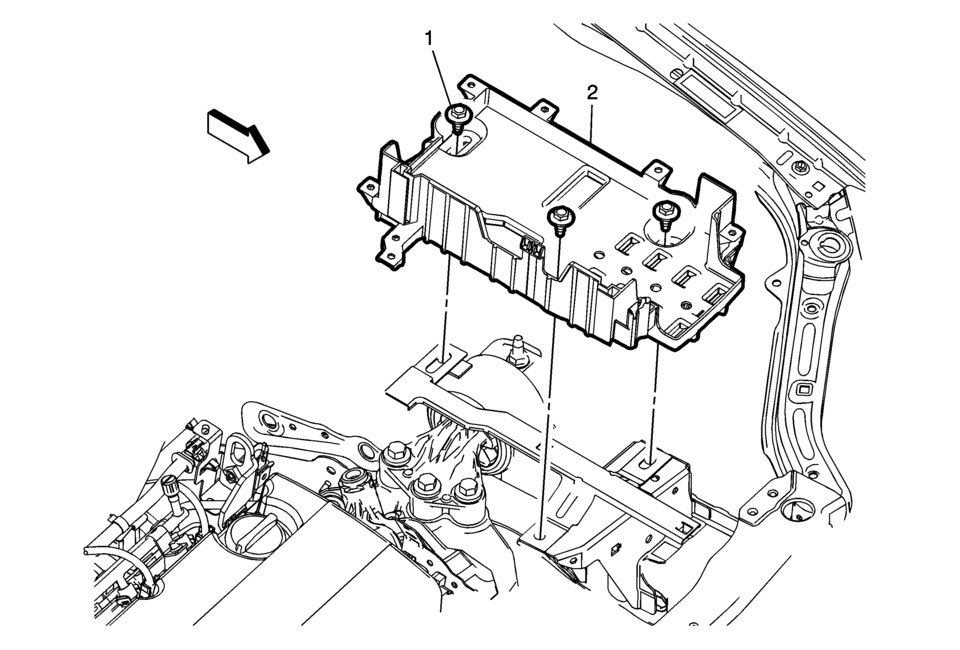

Callout

Component Name

Preliminary Procedures

  1. Remove the battery. Refer to Battery Replacement.
  2. Unclip the engine control module (ECM) bracket from the battery tray and set aside.
  3. Unclip the battery current sensor from the battery tray and set aside.

1

Battery Tray Bolt (Qty: 3)

Caution:

Refer to Fastener Caution.

Tighten


14 Y (10 lb ft)

2

Battery Tray

Battery System
...

Battery Current Sensor Replacement
