Body Rear Seat Back Trim Panel Replacement

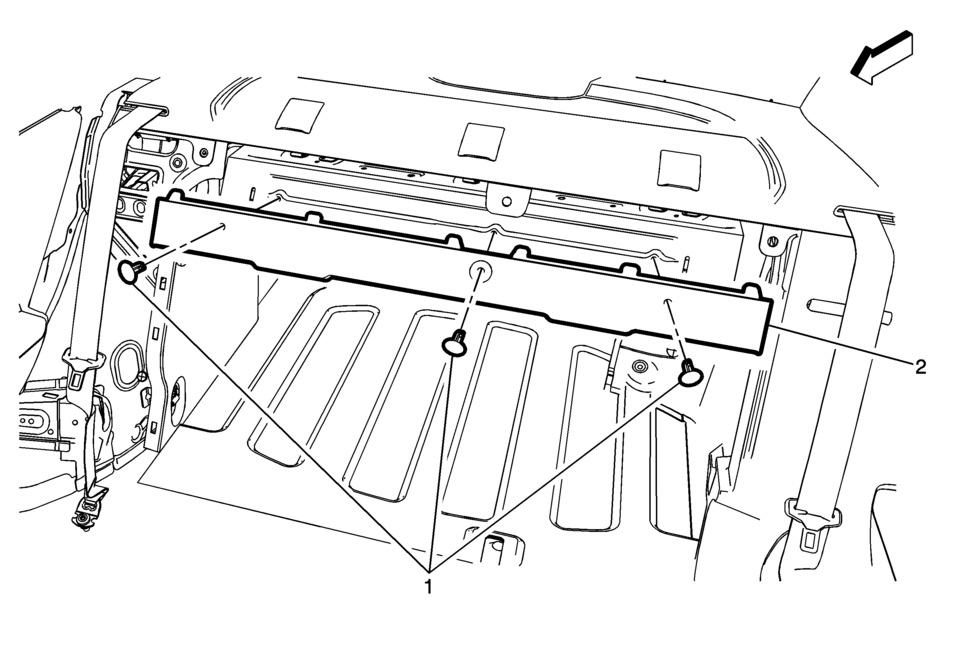

Callout

Component Name

Preliminary Procedure

Remove the body side trim panel. Refer to Body Side Trim Panel Replacement.

1

Body Rear Seat Back Trim Panel Retainer (Qty:?€‰3)

Procedure

Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward.

2

Body Rear Seat Back Trim Panel Assembly

Rear
...
