Chevrolet Sonic Repair Manual: Brake Pedal Position Sensor Replacement

Chevrolet Sonic Repair Manual / Body / Body Electrical / Lighting / Brake Pedal Position Sensor Replacement

Removal Procedure
  1. Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement.


  2. Disconnect the brake pedal position sensor electrical connector.

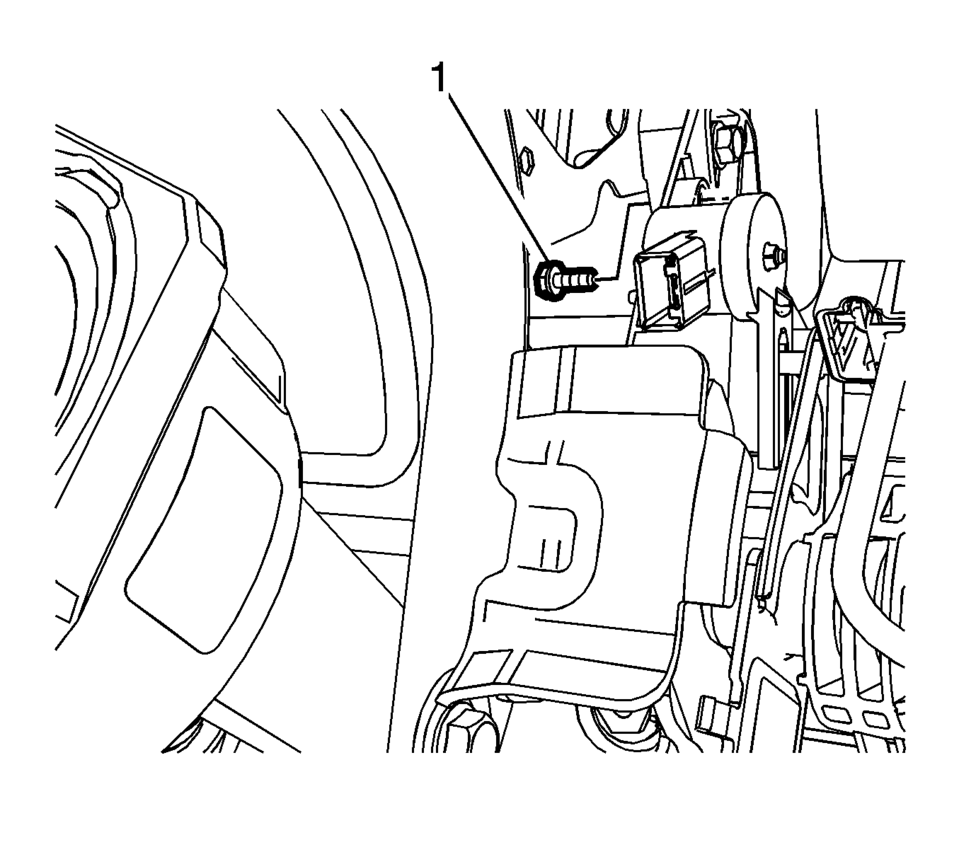

  3. Remove the brake pedal position sensor bolt?€‰(1).
  4. Remove the brake pedal position sensor.
Installation Procedure


    Note:

    Ensure the fork of the brake pedal position sensor is positioned over the brake pedal post.

  1. Install the brake pedal position sensor to the brake pedal bracket.
  2. Caution:

    Refer to Fastener Caution.

  3. Install the brake pedal position sensor bolt?€‰(1)?€‰and tighten to?€‰ 3?€‰Y (27?€‰lb?€‰in)

    .

  4. Connect the brake pedal position sensor electrical connector.
  5. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration.
  6. Install the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement.
Brake Pedal Position Sensor Calibration
Calibration Criteria Note: Do not apply the brake pedal during the brake pedal position sensor calibration procedure. Any movement of the brake pedal during this procedure will ca ...
