Chevrolet Sonic Repair Manual: Crankshaft Sprocket Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Block / Cylinder Block / Crankshaft Sprocket Installation



Note:

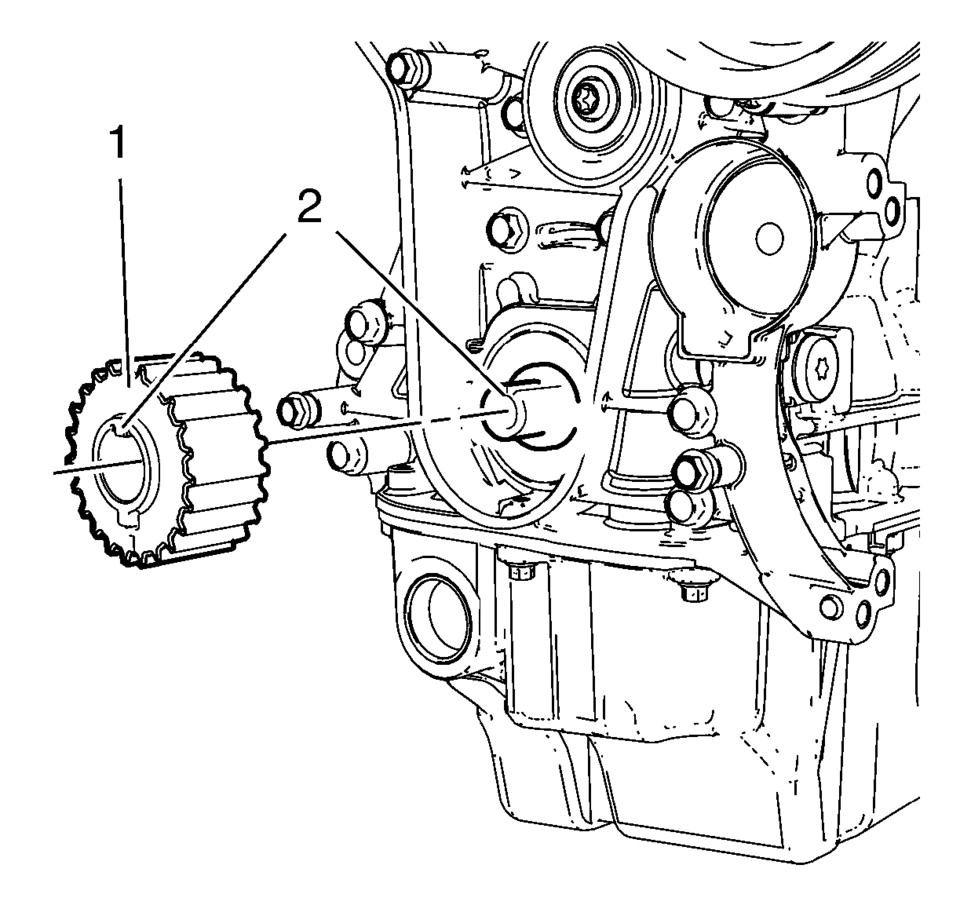

When installing the crankshaft sprocket, the cam and the groove must align (2).

Install the crankshaft sprocket (1).

Cylinder Block
...

Crankshaft Sprocket Removal
Remove the crankshaft sprocket (1). ...
