Chevrolet Sonic Repair Manual: Door Lock Switch Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement. |
|
|
1 |

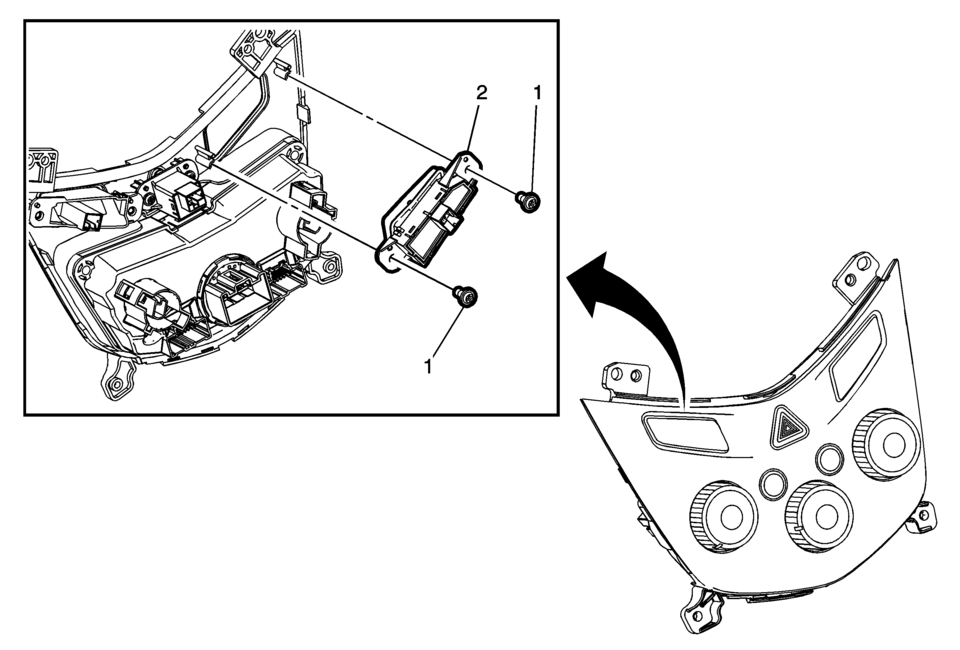

Door Lock Switch Bolts (Qty: 2) Caution: Refer to Fastener Caution. |
|
2 |
Door Lock Switch Procedure
Disconnect the electrical connector. |
Locks
...
Door Lock and Ignition Lock Folding Key Blade Removal and Installation
Special Tools
BO-51098 Flip Key Blade Fixture
For equivalent region tools, refer to Special Tools.
Caution: Failure to properly support the Remote Keyless Entry
(RKE) transmitt ...
