Chevrolet Sonic Repair Manual: Drive Belt Tensioner Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Pulleys and Belts / Drive Belt Tensioner Installation

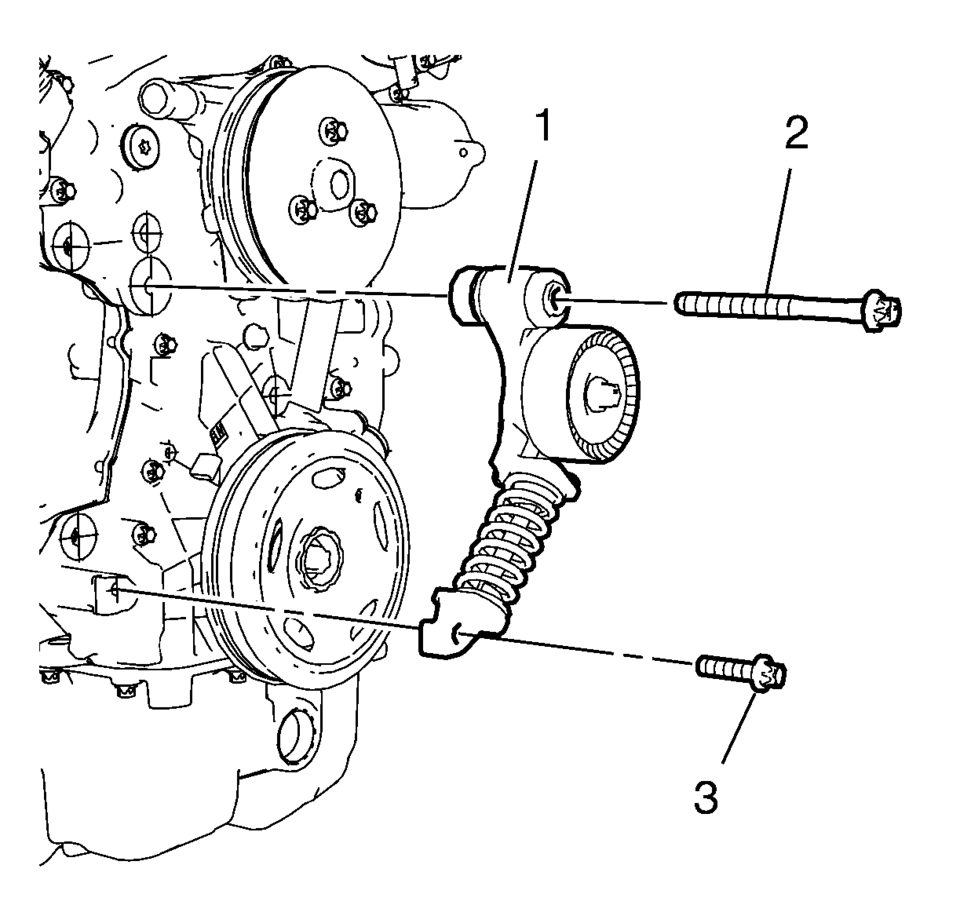

    Install the drive belt tensioner (1).
  1. Install the drive belt tensioner (1).
  2. Install the upper drive belt tensioner bolt (2).
  3. Install the lower drive belt tensioner bolt (3).
  4. Caution:

    Refer to Fastener Caution.

  5. Tighten the lower drive belt tensioner bolt (M8) to 22 Y (16 lb ft)

    .

  6. Tighten the upper drive belt tensioner bolt to  55 Y (41 lb ft)

    .

Pulleys and Belts
...

Drive Belt Tensioner Removal
Remove the drive belt tensioner bolt (1). Remove the drive belt tensioner (2). ...
