Driver or Passenger Seat Cushion Frame Replacement

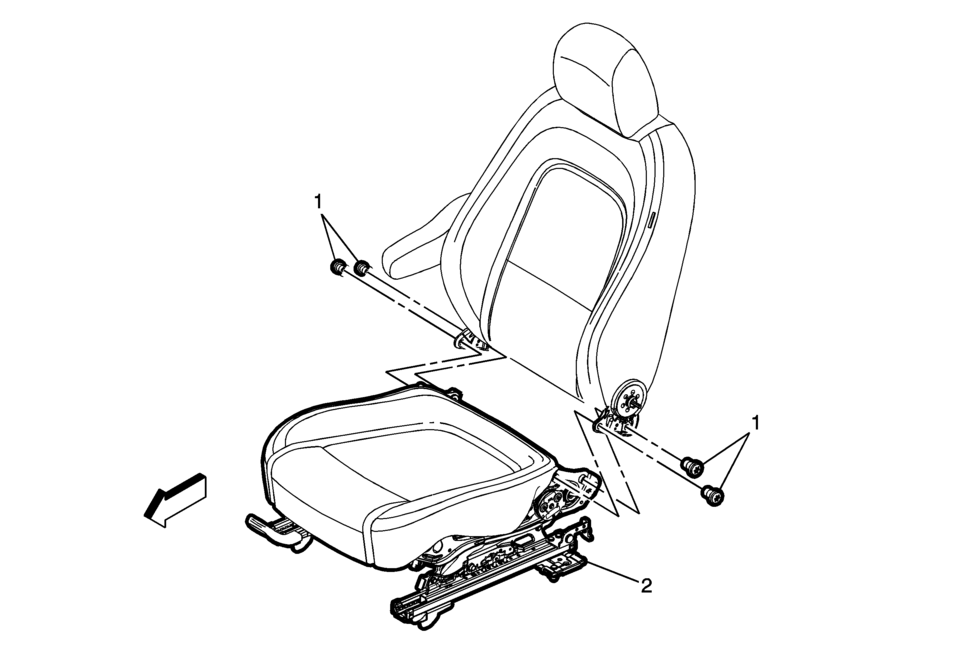

Callout

Component Name

Preliminary Procedures

  1. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation
  2. Remove the front seat cushion outer trim panel. Refer to Front Seat Cushion Outer Trim Panel Replacement
  3. Remove the front seat cushion inner recliner. Refer to Front Seat Cushion Inner Trim Panel Replacement

1

Front Seat Cushion Frame Bolt (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


22?€‰Y (16?€‰lb?€‰ft)

2

Driver or Passenger Seat Cushion Frame

Procedure

  1. Disconnect electrical connectors as needed.
  2. If replacing with a new front seat cushion frame, transfer components as necessary.
Driver or Passenger Seat Back Cushion Heater Replacement
Driver or Passenger Seat Back Cushion Heater Replacement Callout Component Name Warning: Refer to SIR Warning. Prelimi ...

Driver or Passenger Seat Cushion Heater Replacement
Driver or Passenger Seat Cushion Heater Replacement Callout Component Name Warning: Refer to SIR Warning. Preliminary ...
